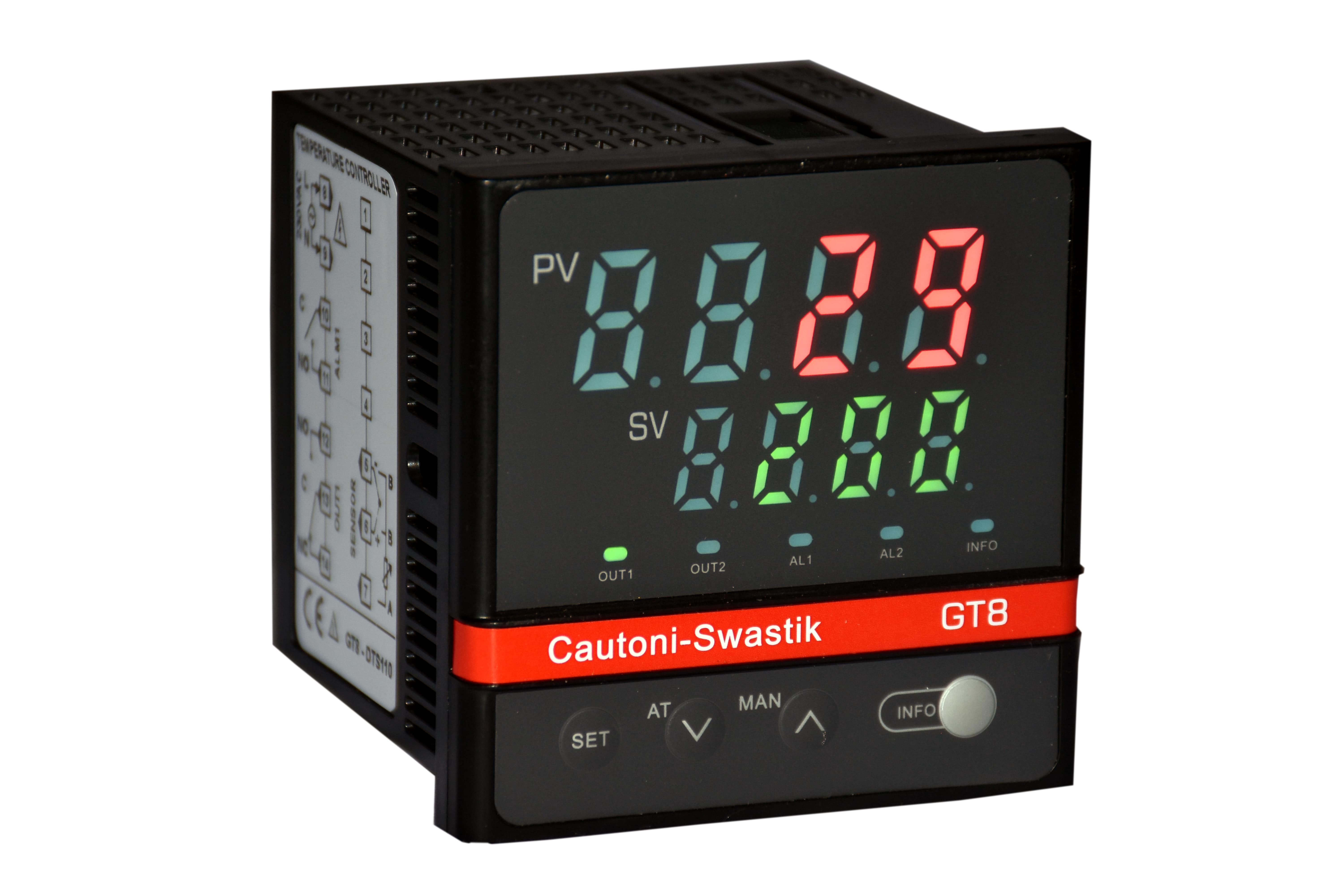

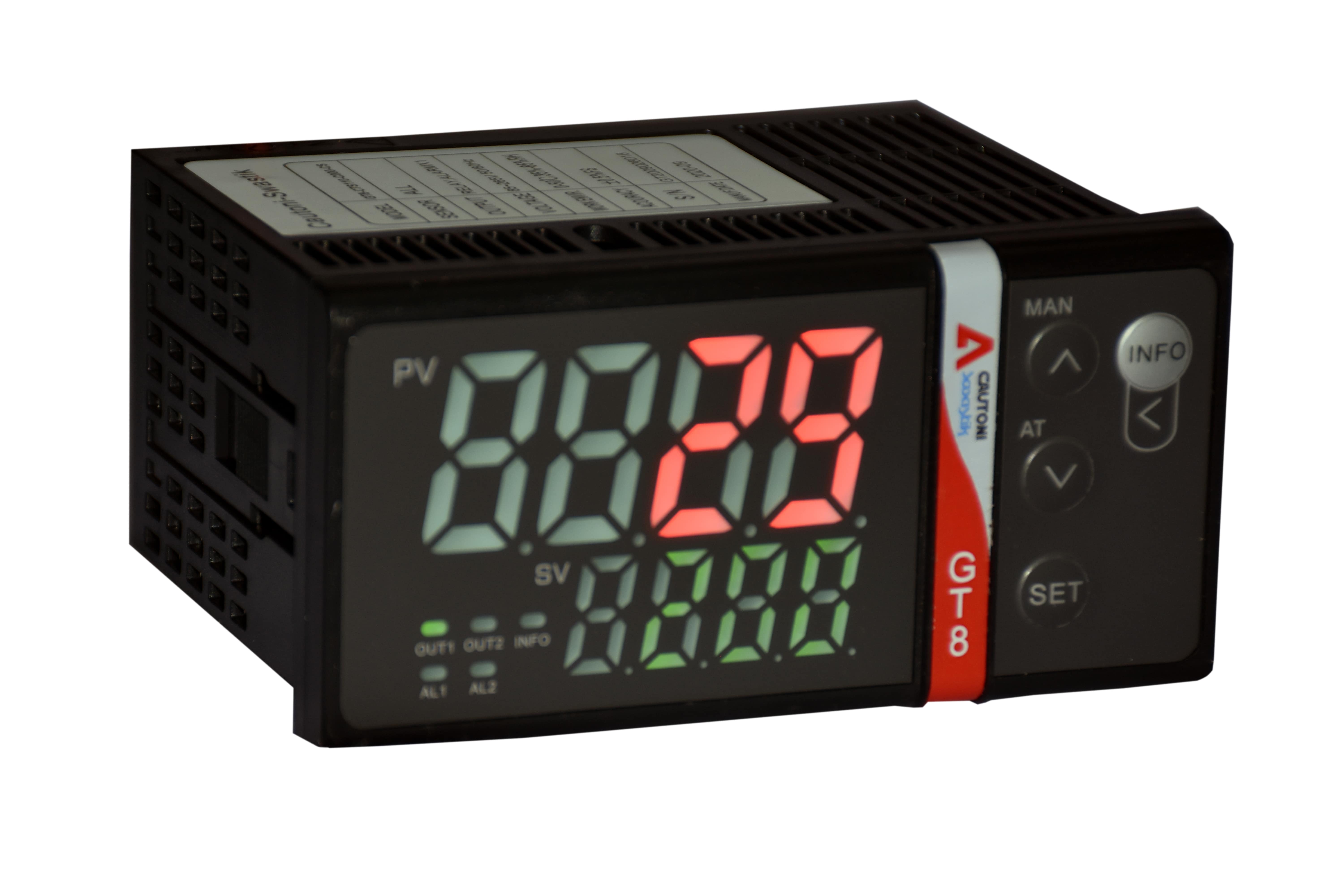

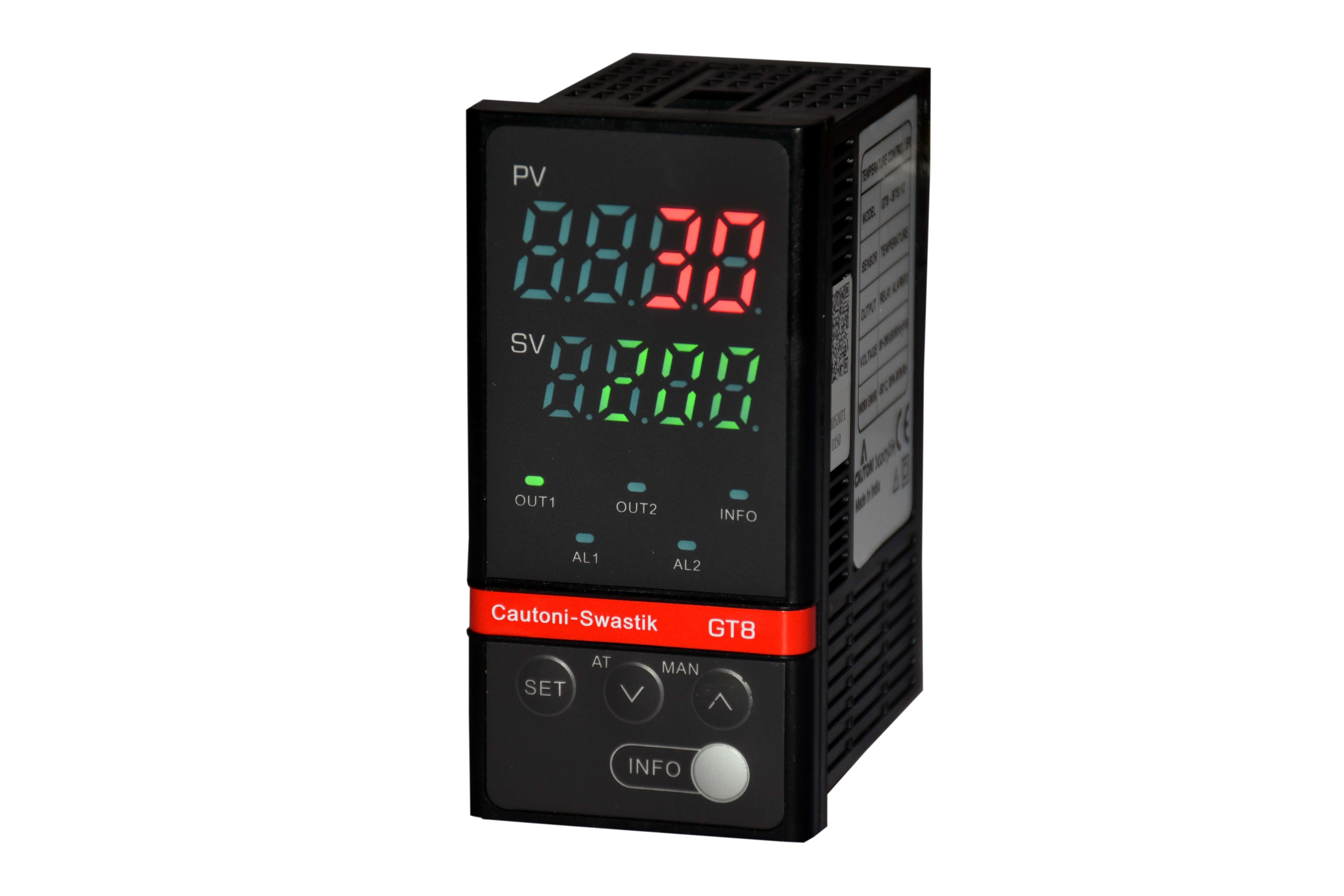

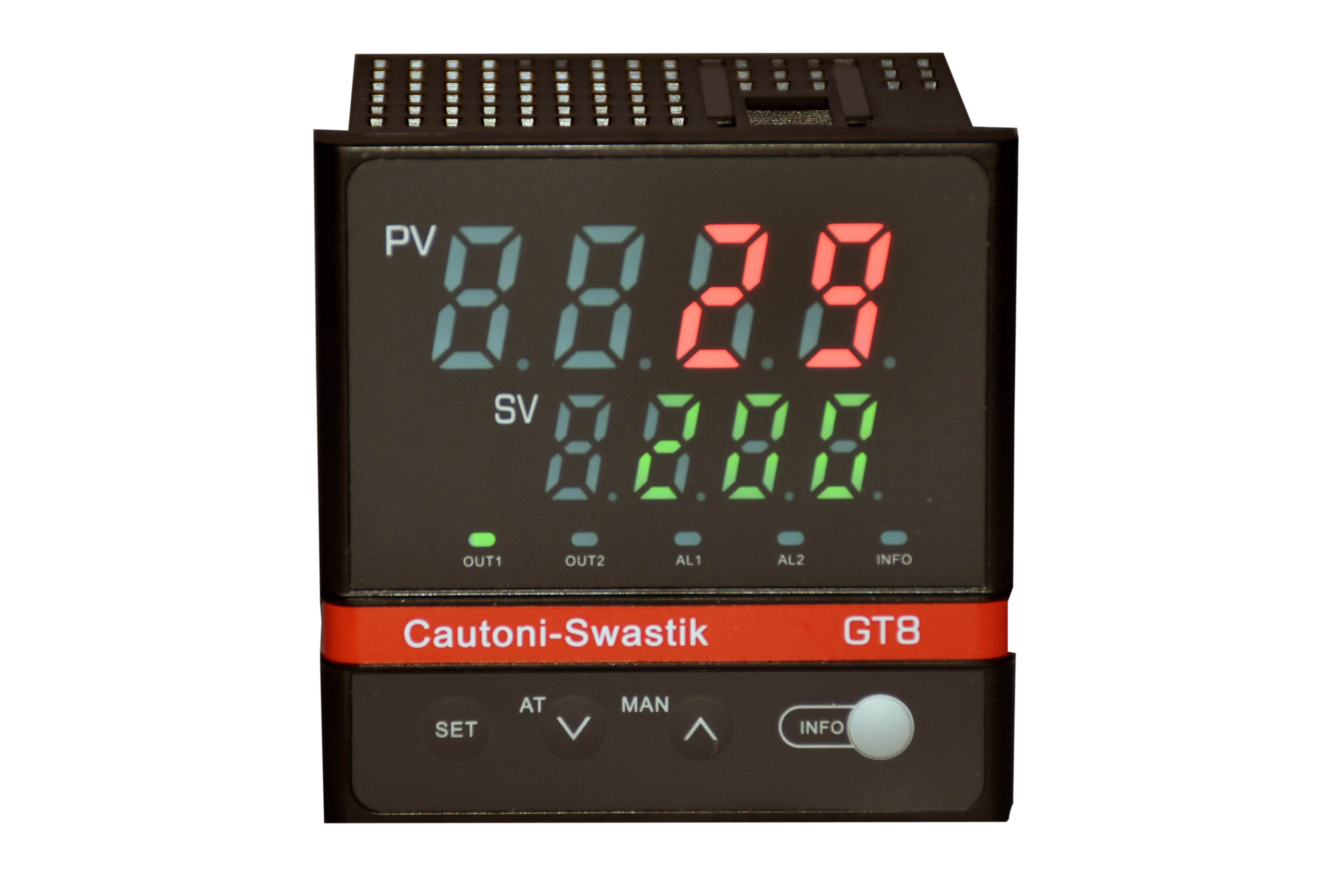

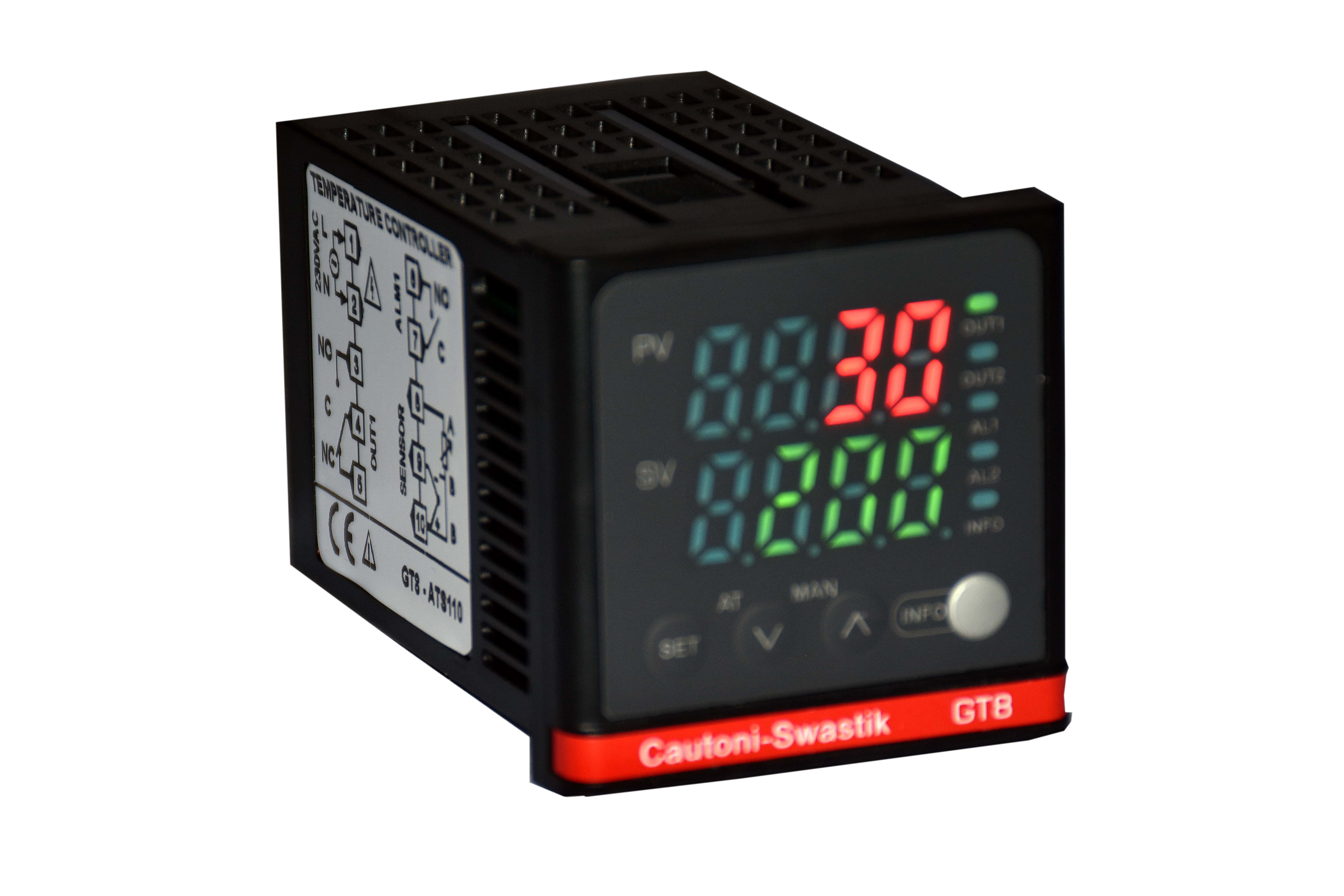

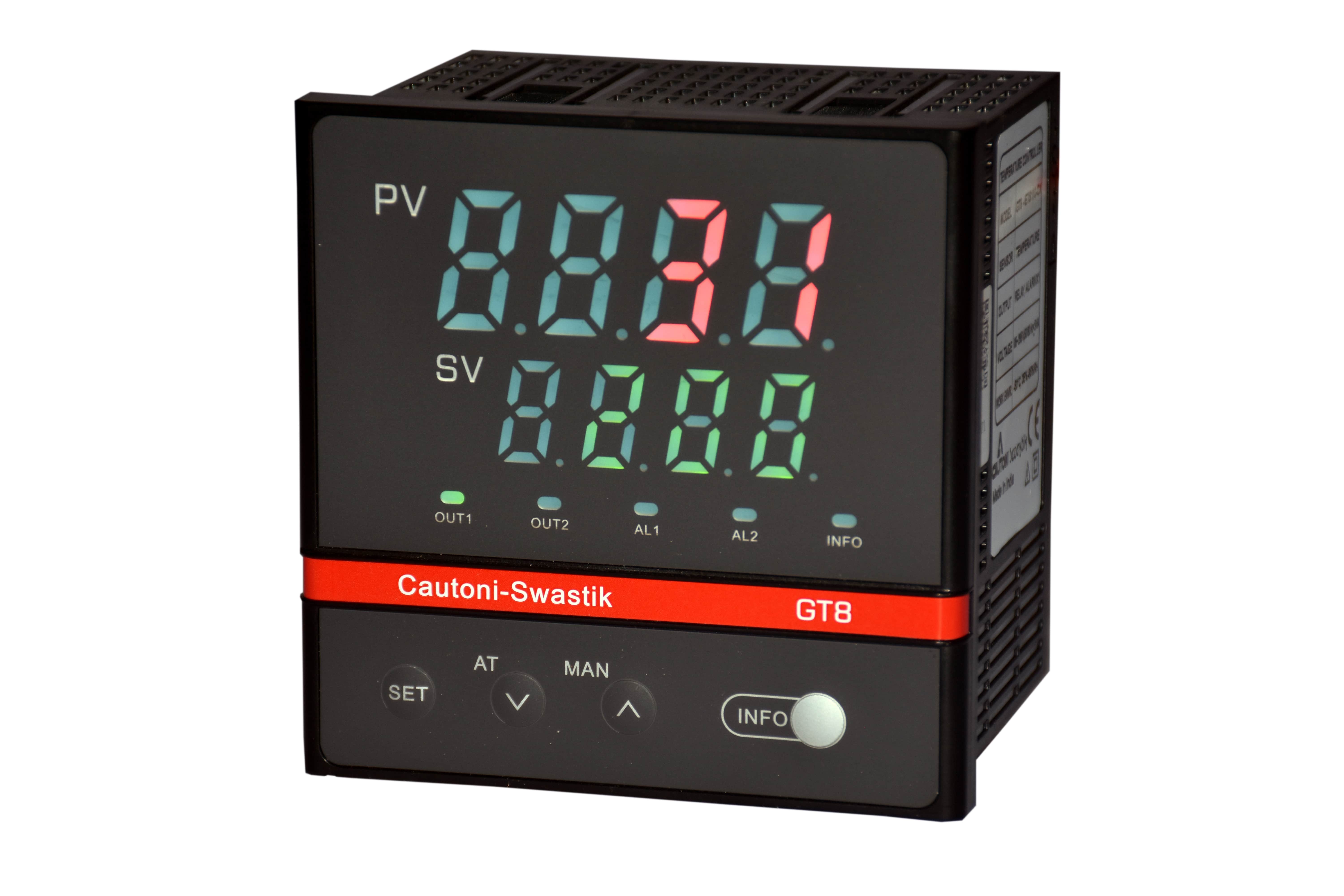

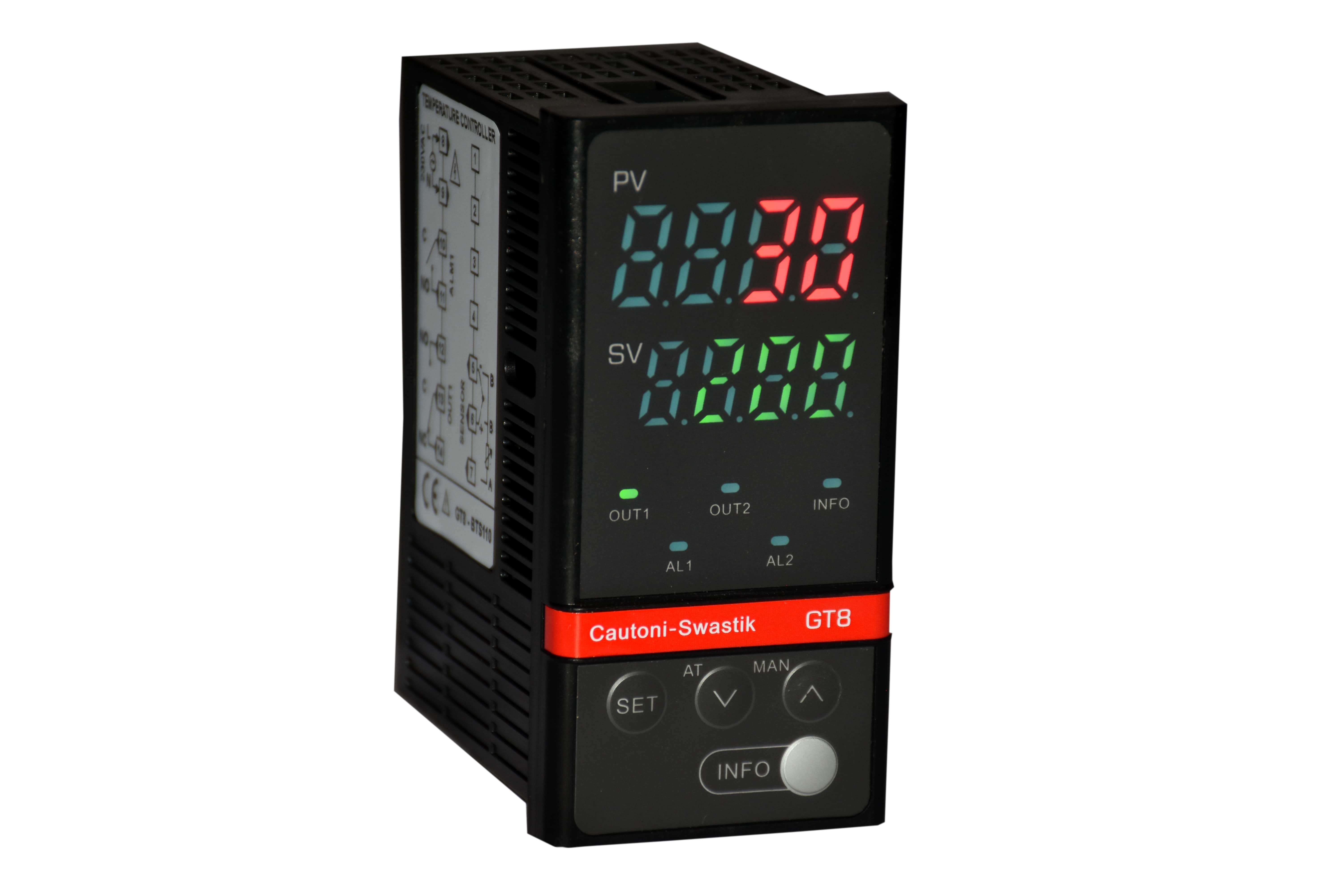

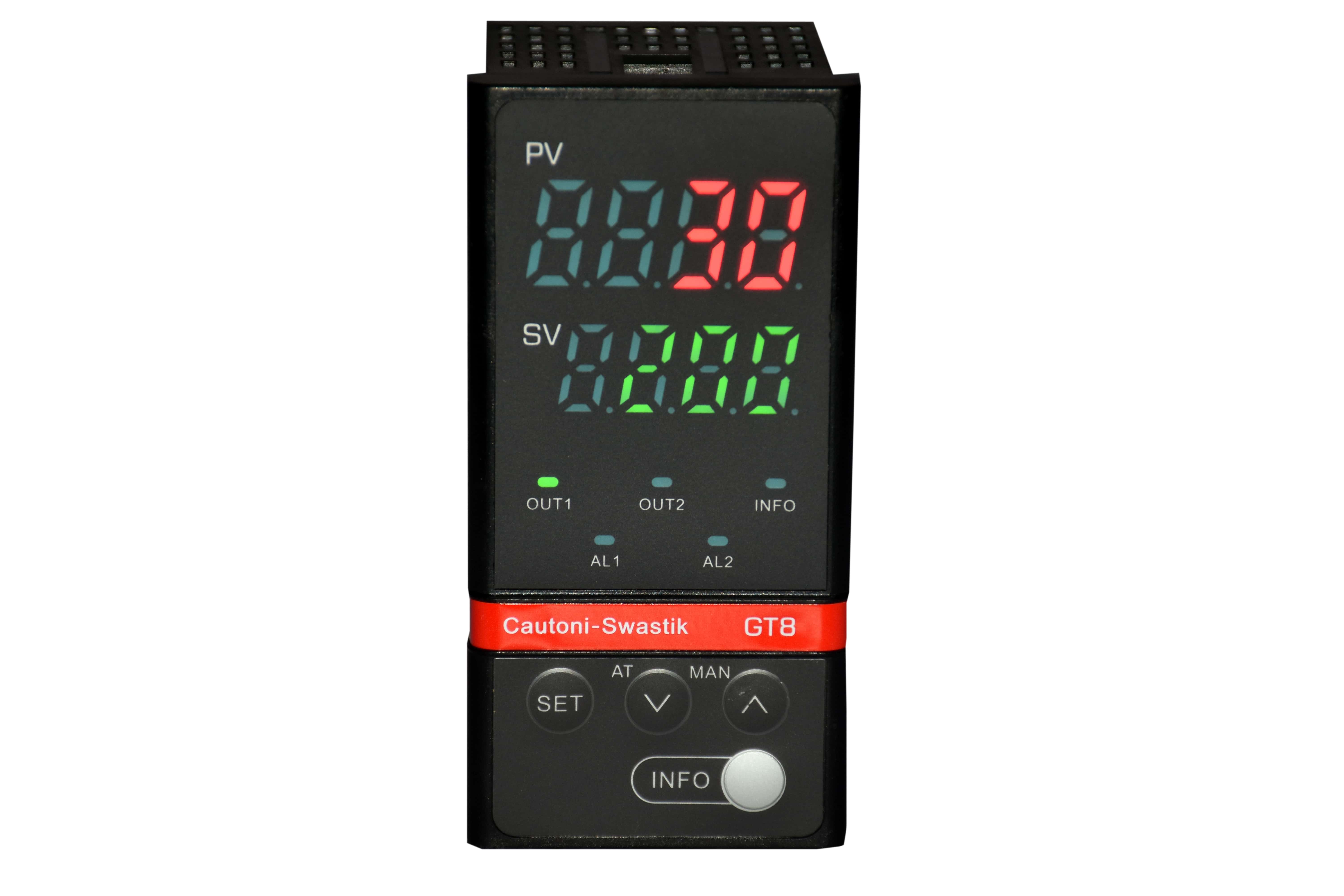

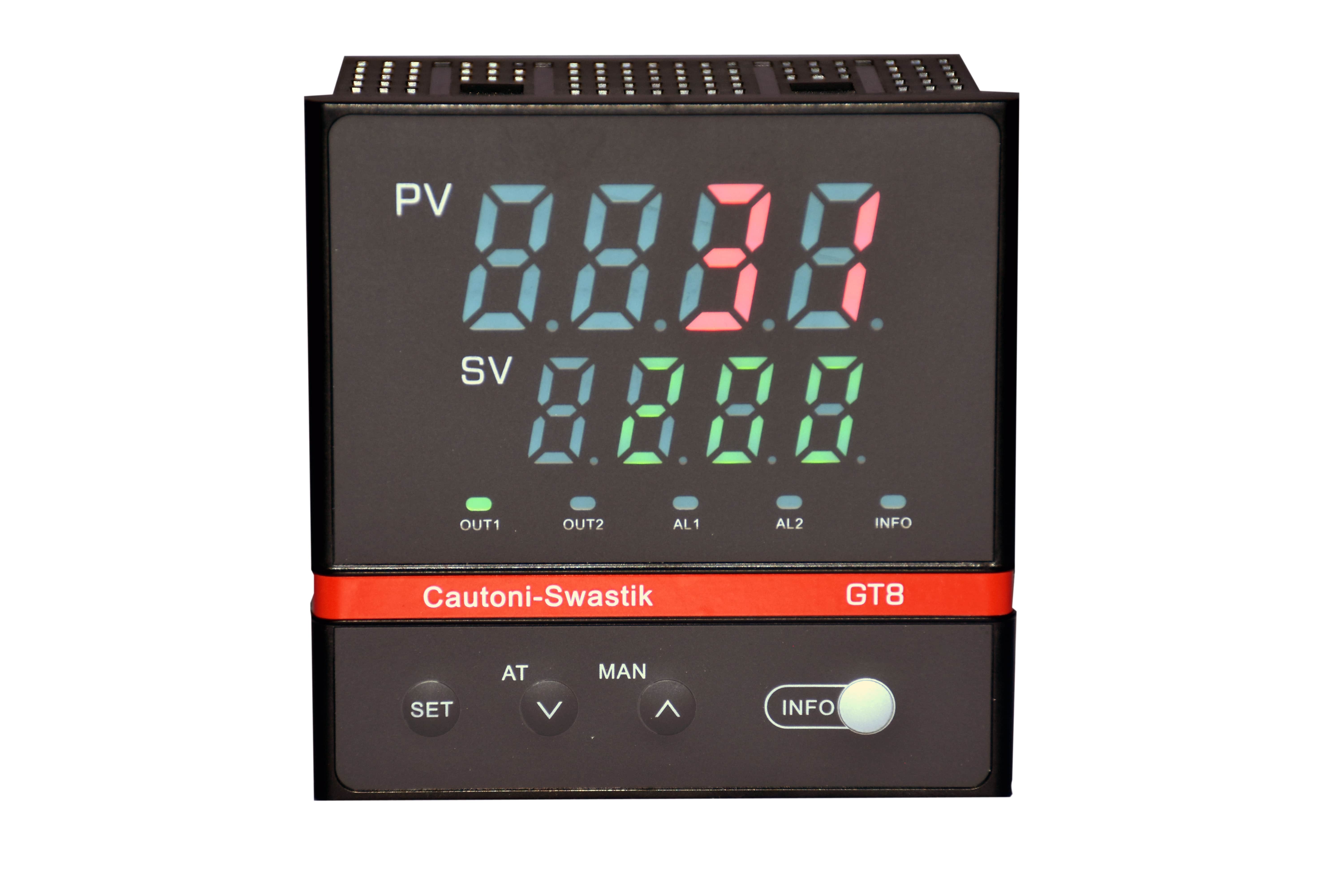

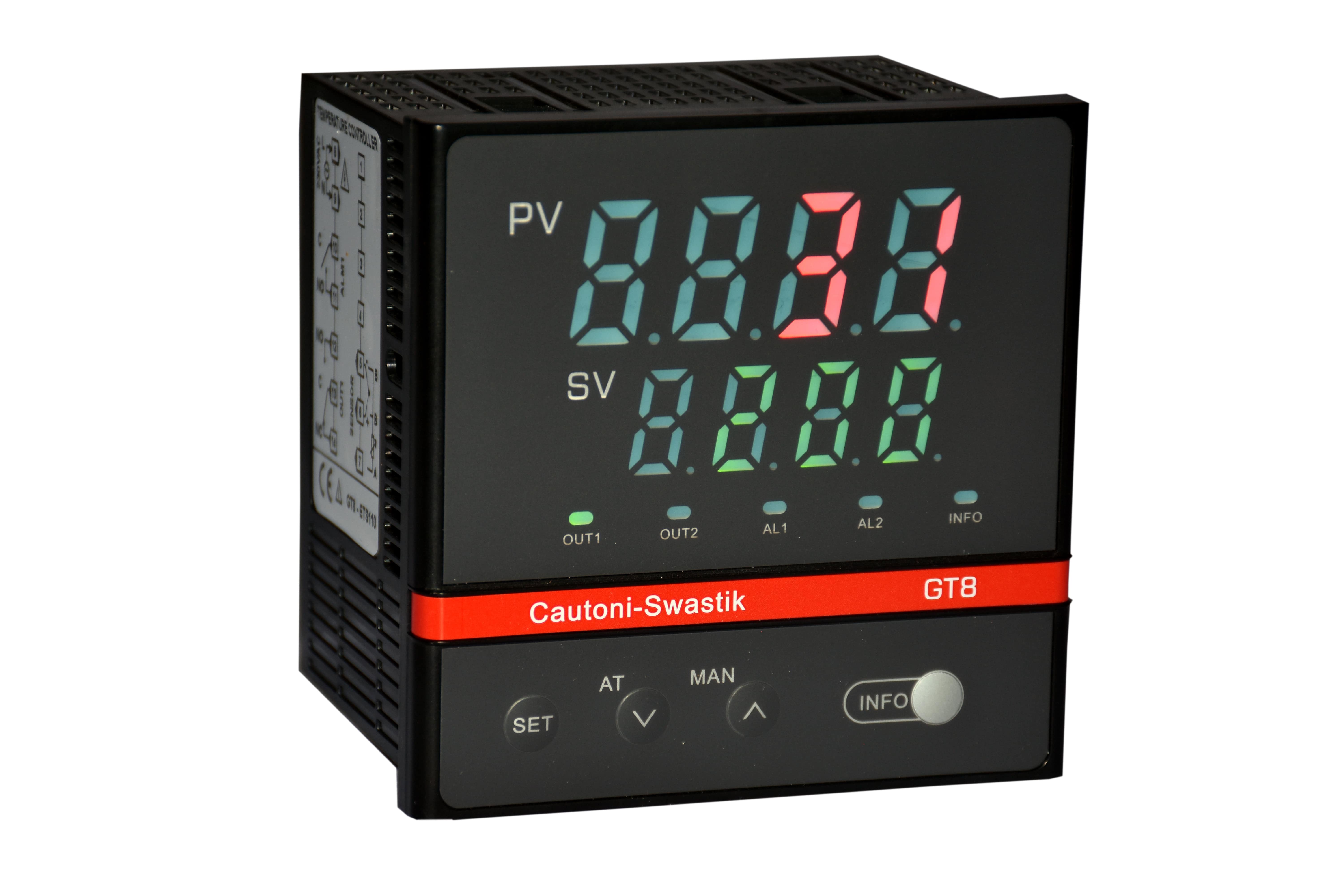

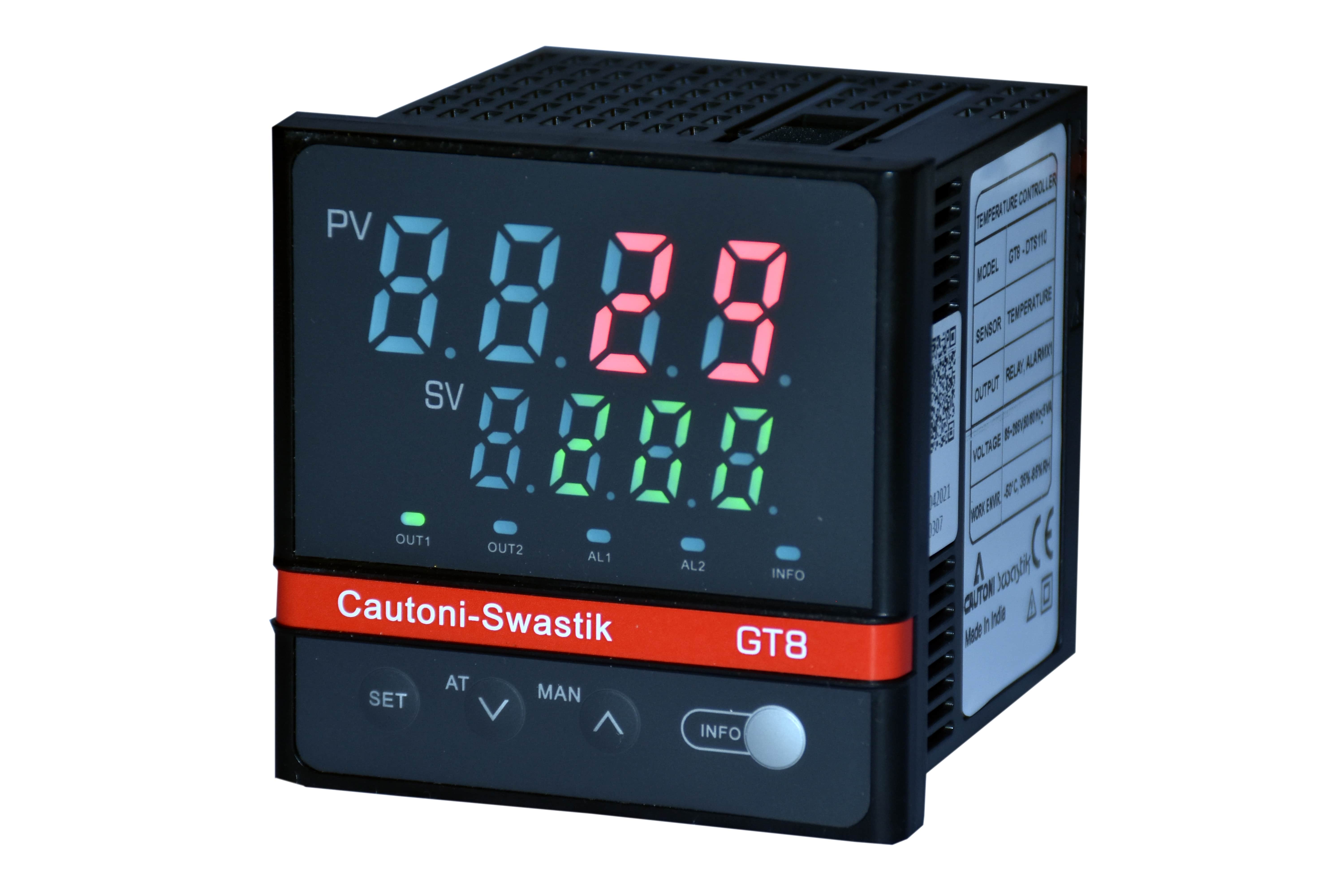

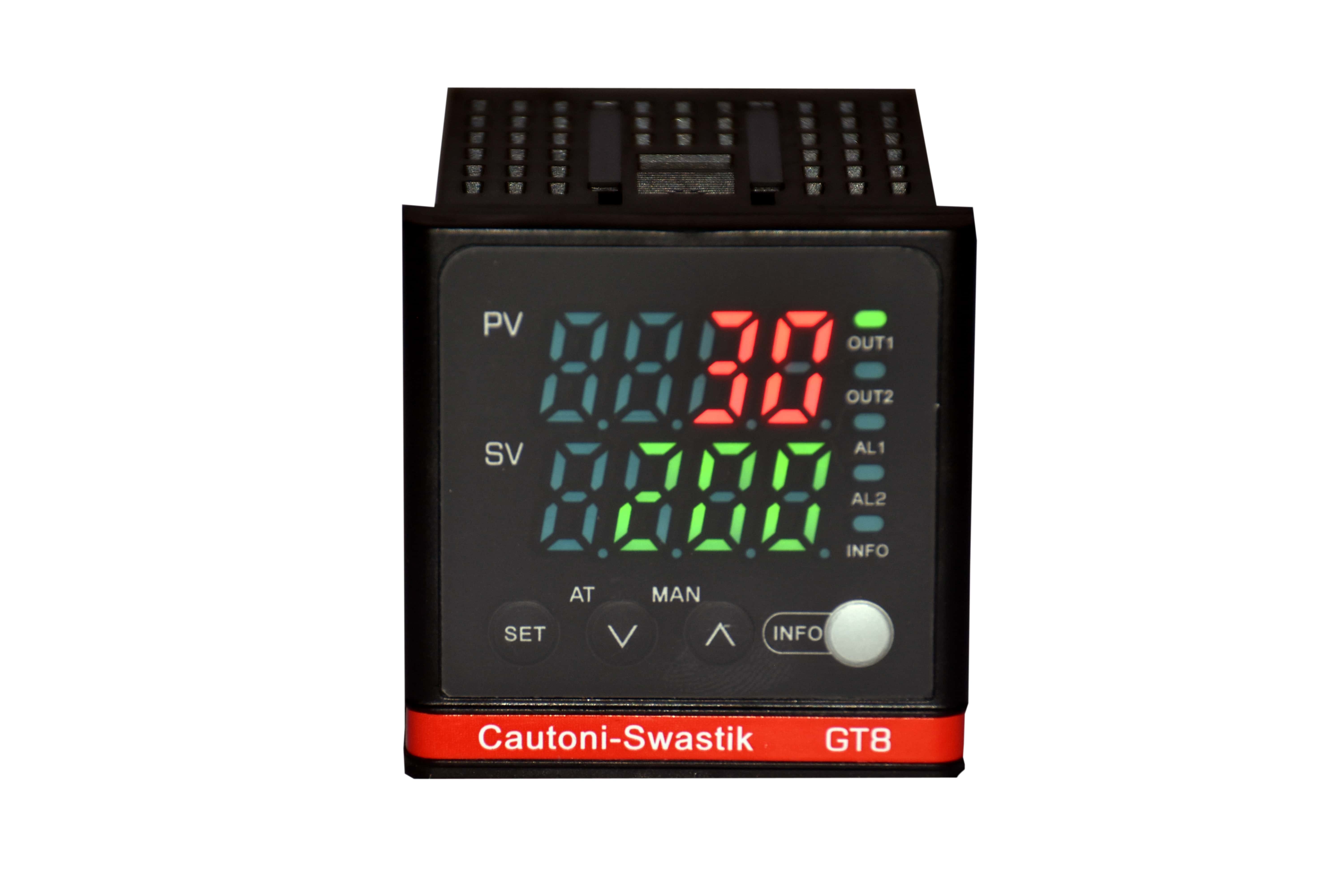

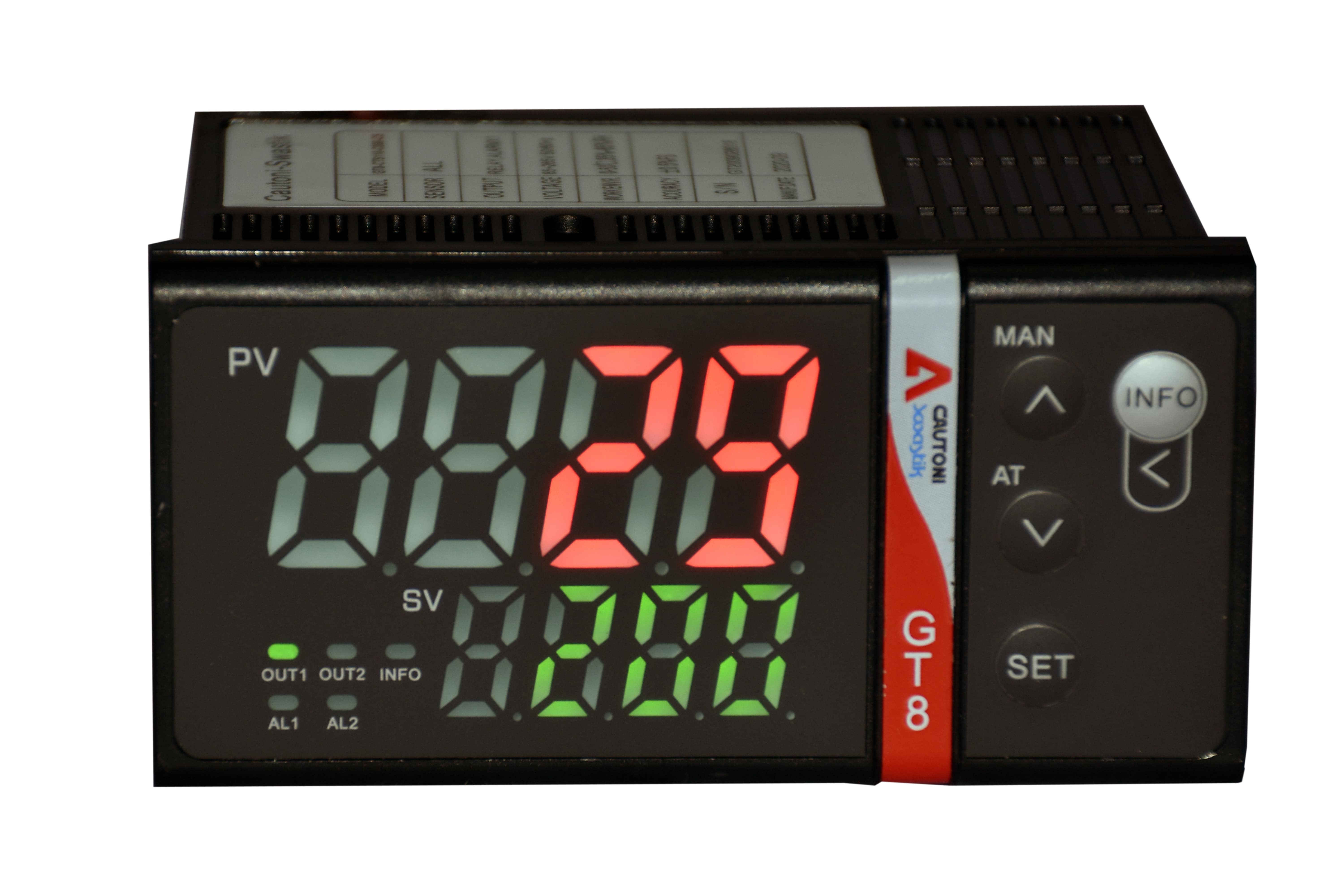

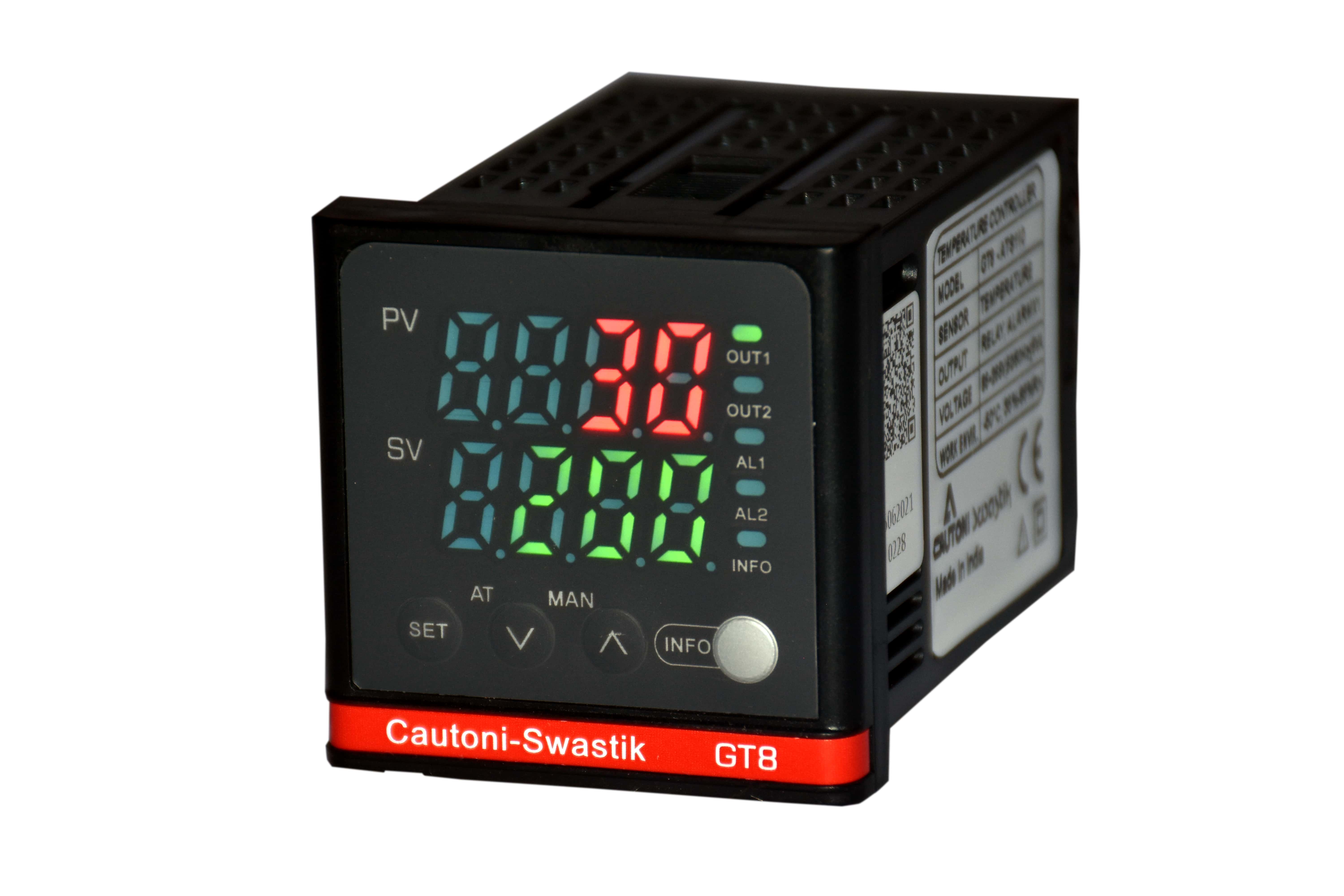

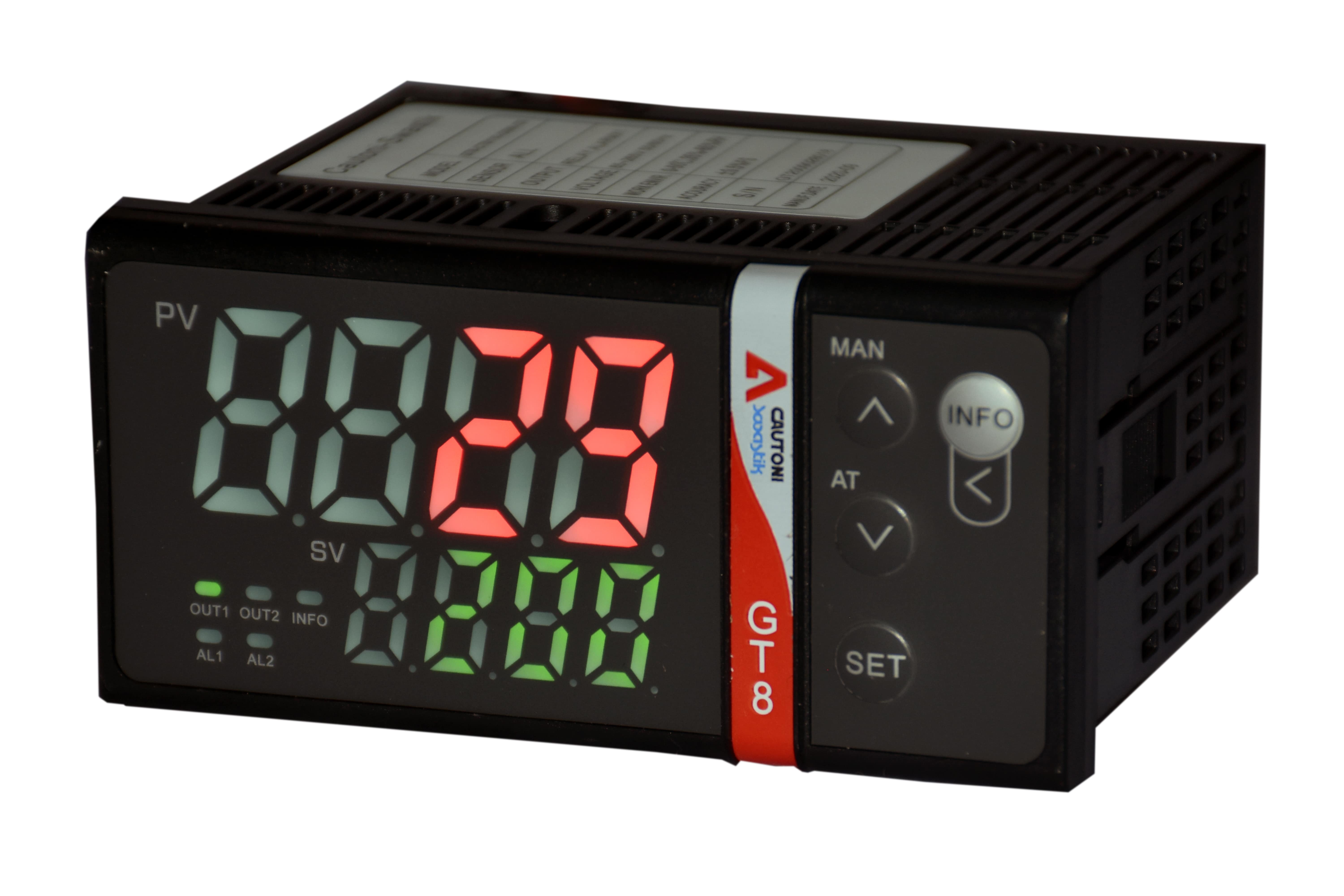

GT8 Temperature Controller

Specifications Description Product Brochure

Case Size	48 x 48, 72 x 72, 48 x 96 (H), 96 x 48 (V),96 x 96 MM
Sensor	T/C : K,E,J,S,B,N,R,T, W3-25,W3-2 RTD : PT-100 /3 WIRE or Analog:(4-20 mA / 0-10 VDC)
Range Limit	Check Table -1 for Range and Set Point High / Low Limit
Accuracy	+/- 0. 5 % OF FS
Sampling Time	300 MS
Resolution	0.1 °C / 1 °C User Selectable
Unit	°C / °F User Selectable
Control Action	PID / TWO -WAY PID / ON-OFF
Number of Relay	2 / 3 Relay Output
Relay	Relay AC 220 V / 30 VDC / 3 A
Logic Level	On : 12 VDC OFF : 0.5 VDC / 30 mA, Load Resistance
Analog Output	4 - 20 mA / 20 - 4 mA Isolated from input
Auto / Manual Operation	Output Power is increased / Decreased by Up / Down key in Manual Mode
Alarm Type	High / Low Alarm with ( Absolute / Keeping / Return Difference Mode )
Application	Heating / Heating + Cooling / Cooling / BOD / COD (Temperature with Timer)
Display / color	4 Digit Dual Display Upper : 4 digit Red Lower : 4 Digit Green Seven Segment Display
Keyboard	4 keys
Indication	Indication for Relay Status / Alarm Status / Alarm Information
Port	RS - 485
Protocol	Modbus / RTU
Mounting	Flush Panel Mounting With Side Clamp
Power Supply	95 - 270 VAC, 50- 60 Hz
Working Enviornment	Temp : 0 - 50°C / Rh : 35 - 85 % ( Non - Condensation )
