| Processor | 32 bit multitasking processor | |
|---|---|---|
| Program Capacity | 32 Kb -standard version | |
| 16 Kb - enhanced version | ||
| Execution Speed | < 0.2 MicroSec | |
| Data Registe | 8 K Words | |
| PLC | USB / COM PORT | |
| Serial Port | Serial Port Modbus RTU (Master / Slave configurable Mode) baud rate up to 115.2 Kbps | |

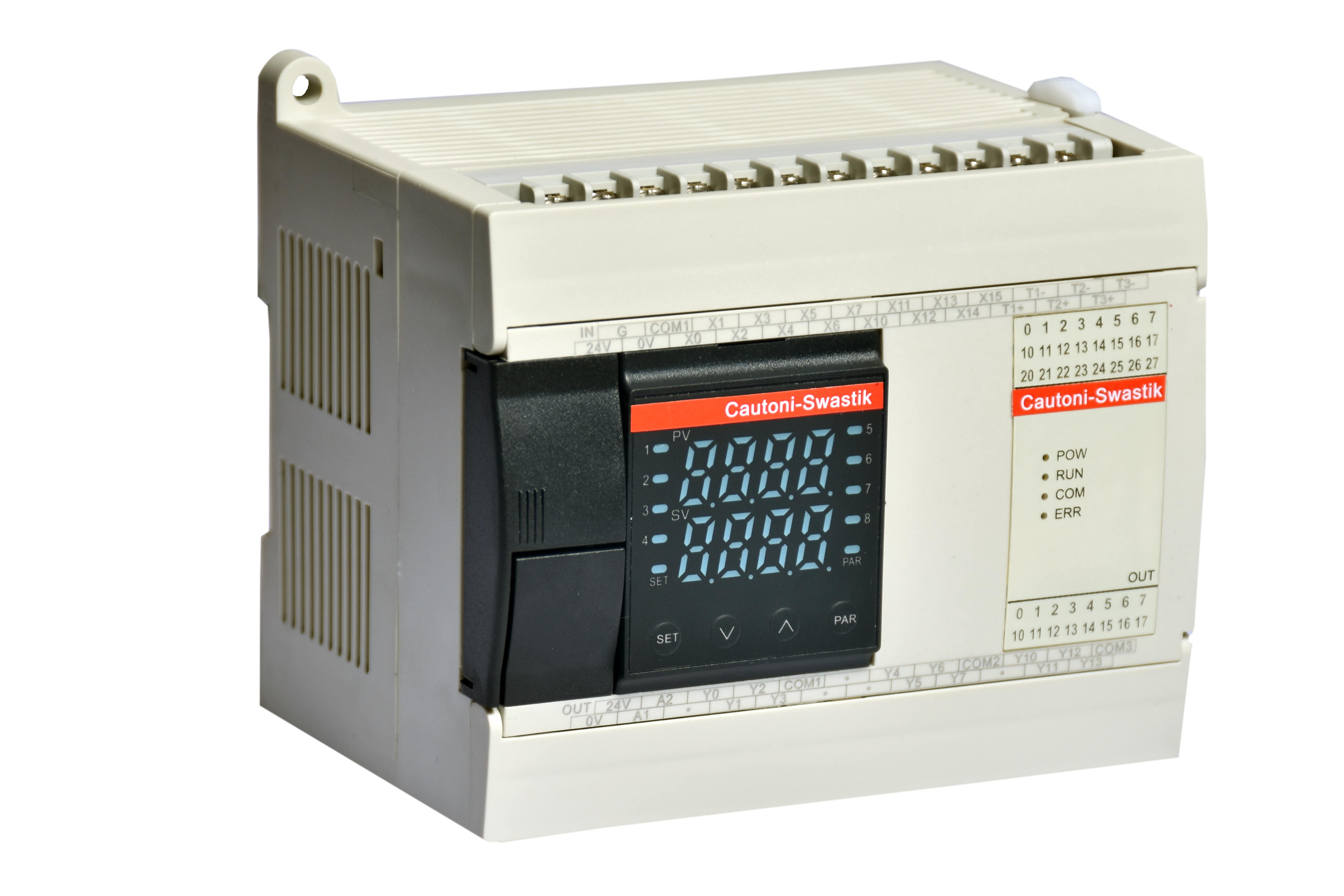

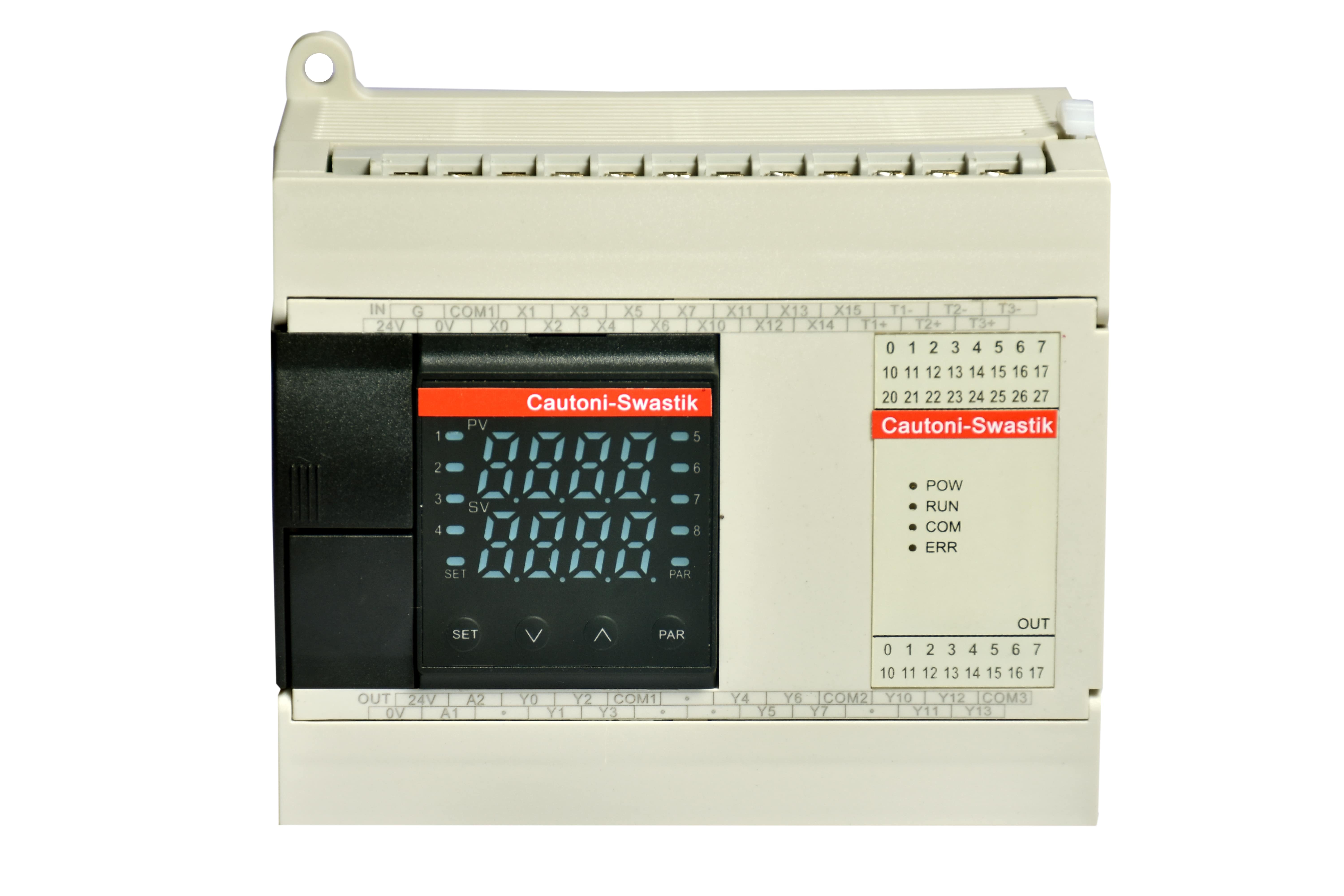

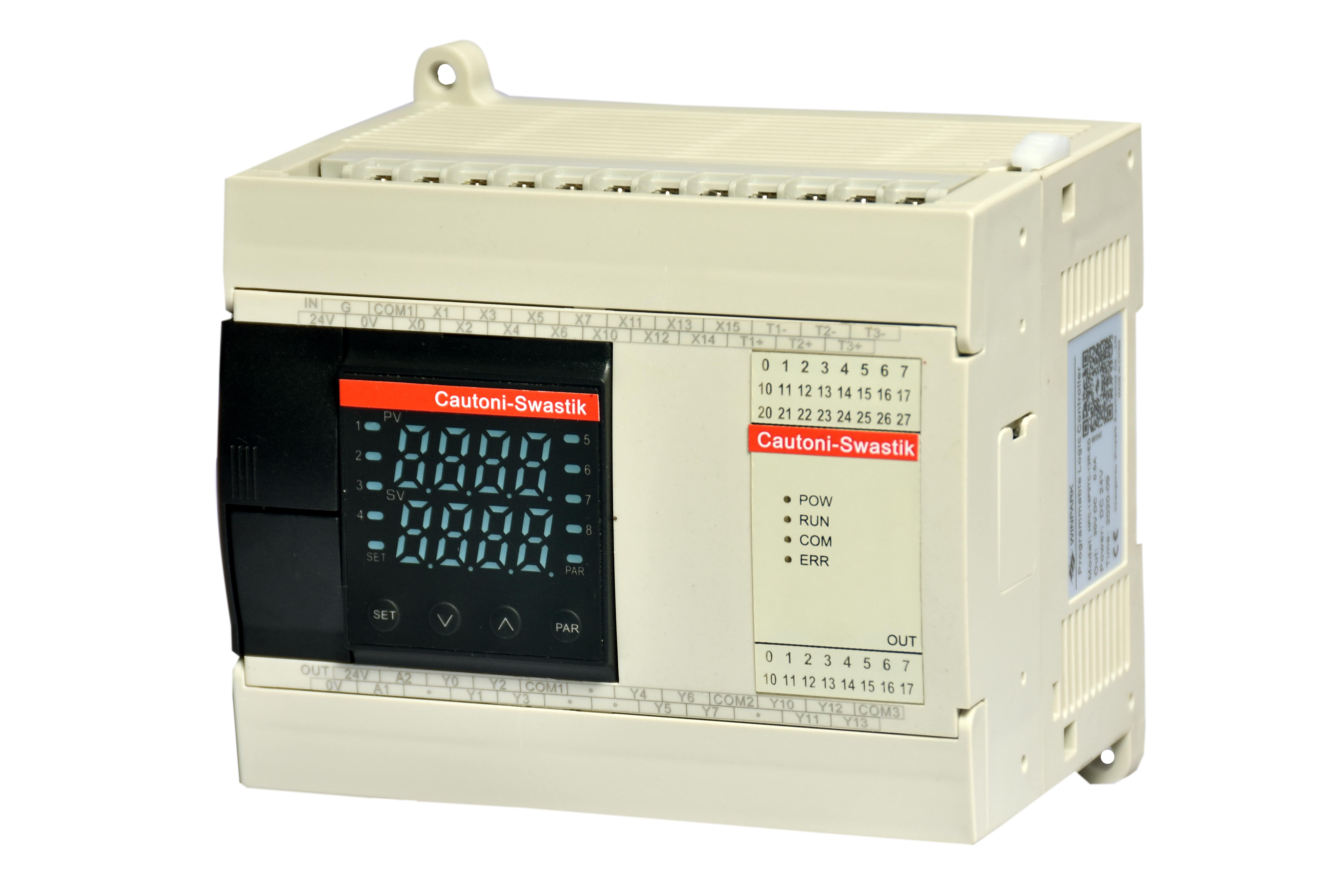

| I/O's | 14*DI / 12*DO / 3-CH Temp ( 29 Point )-HPC-14P12R3T | |

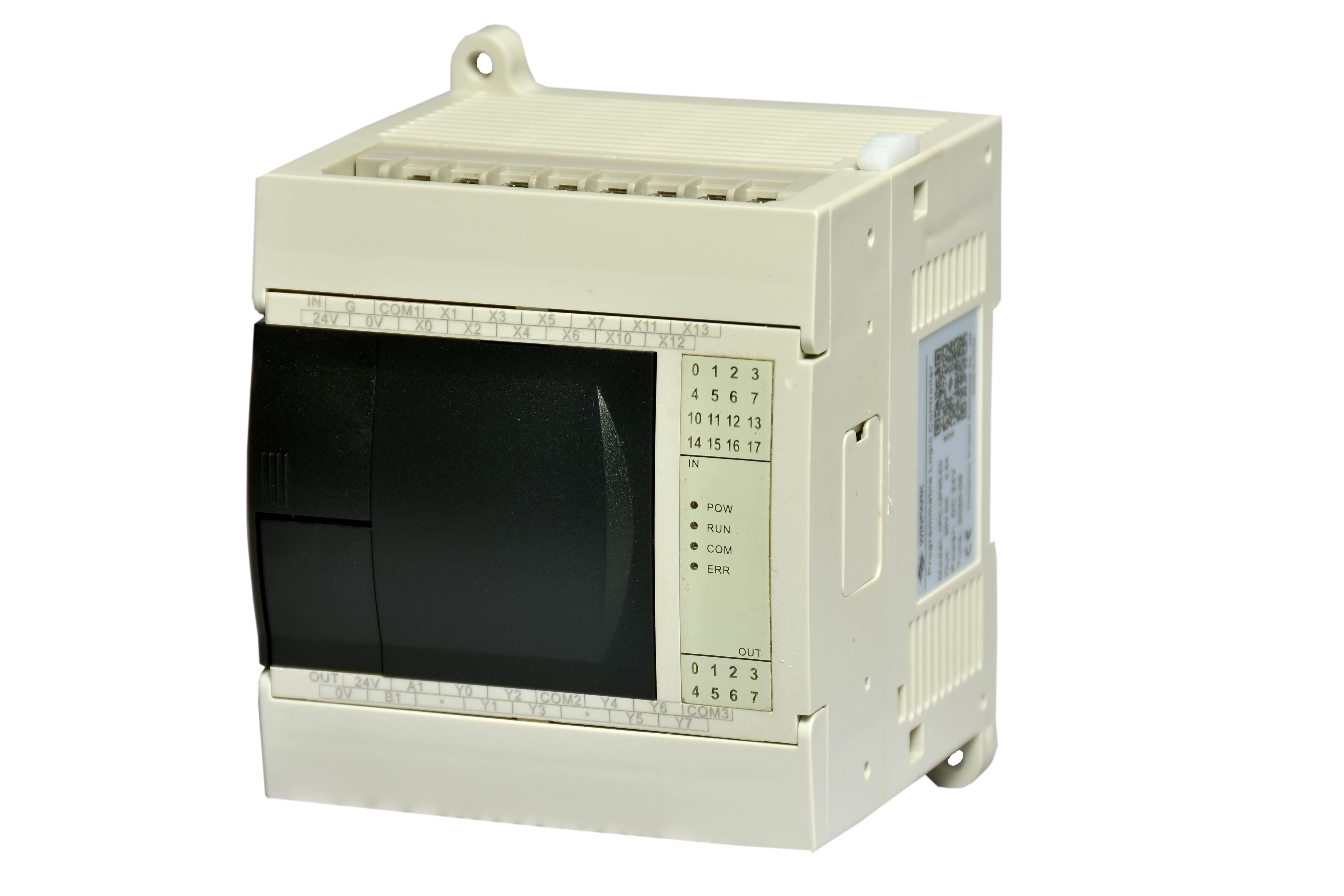

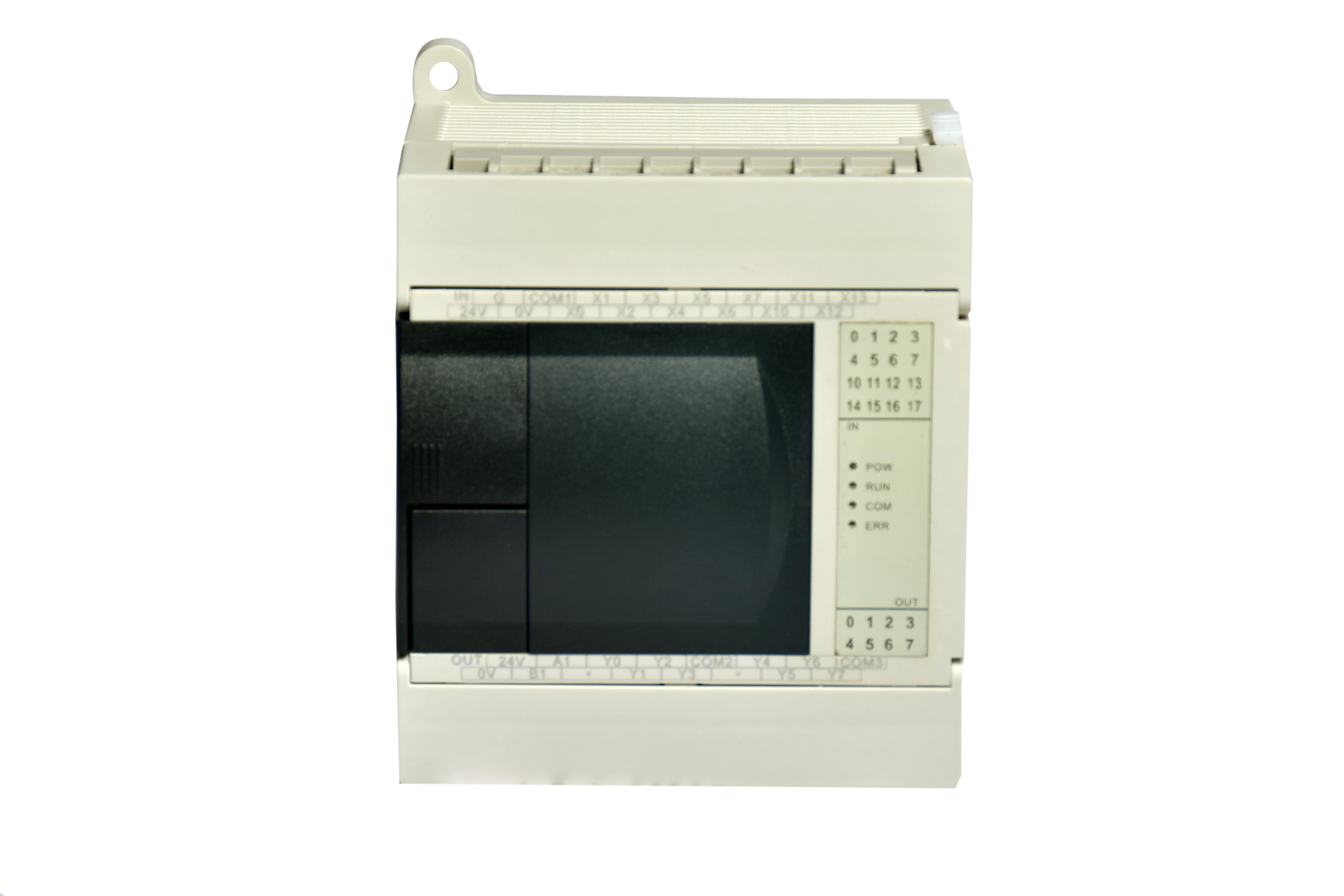

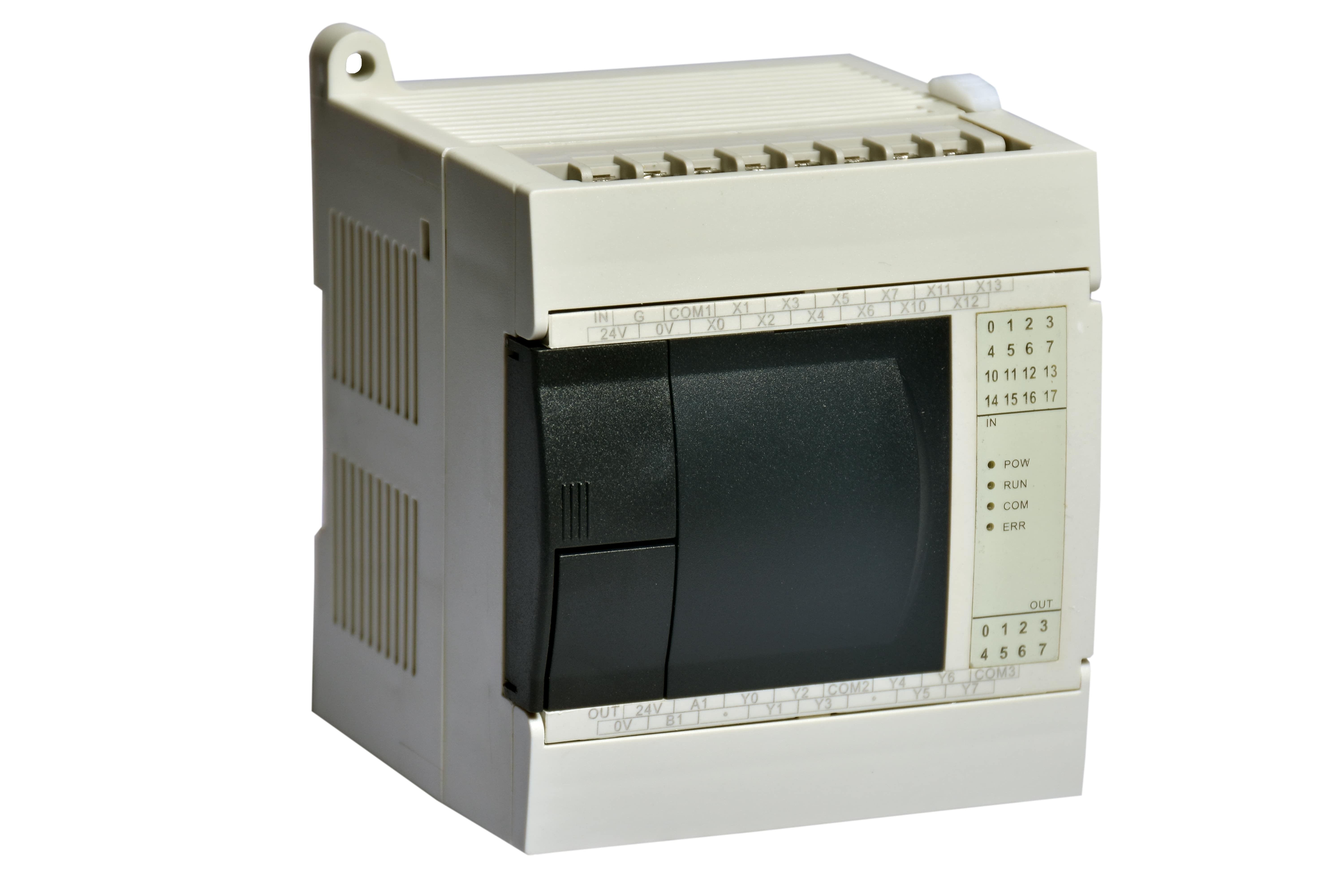

| 12*DI / 8*DO ( 20 Point )-HPC-12P-8R | ||
| DI | ( NPN Type ) | |
| DO | Relay or Transistor, Relay : 3 Amp / 230 VAC | |
| TEMP | 3 CH T/C | |
| Shell Color | Grey | |
| Shell Material | ABS | |
| Mounting | Channel Mounting | |
| Dimension | 95 x 120 x 80 mm | |
| 95 x 85 x 80 mm | ||
| Power Supply | 24 VDC | |
| Power Consumption | > 3 W | |
| Working Environment | Temp : 0 -50*C / RH : 35 - 85 % ( Non- Condensation ) | |
| Protection | IP-65 ( Front Panel ) |
