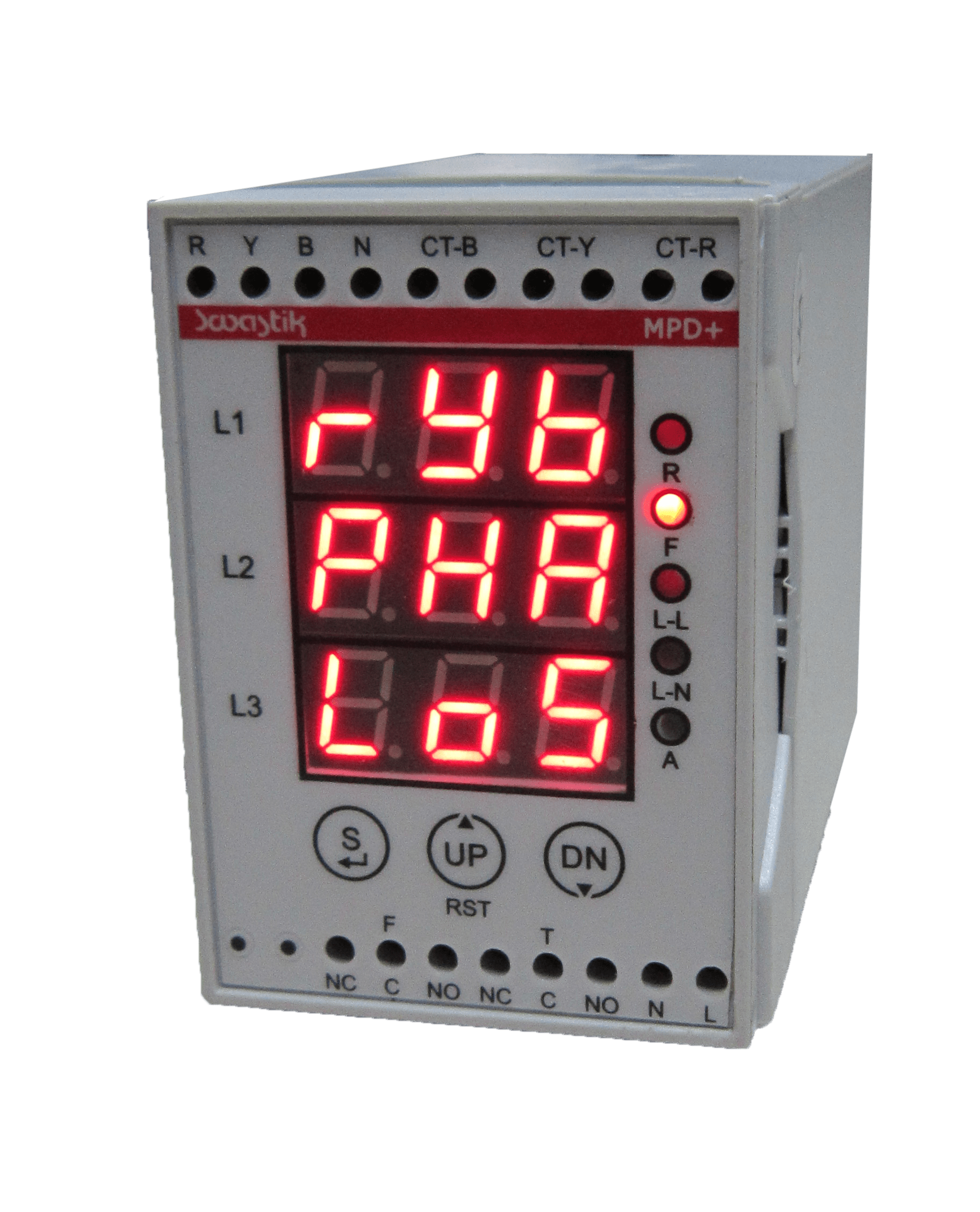

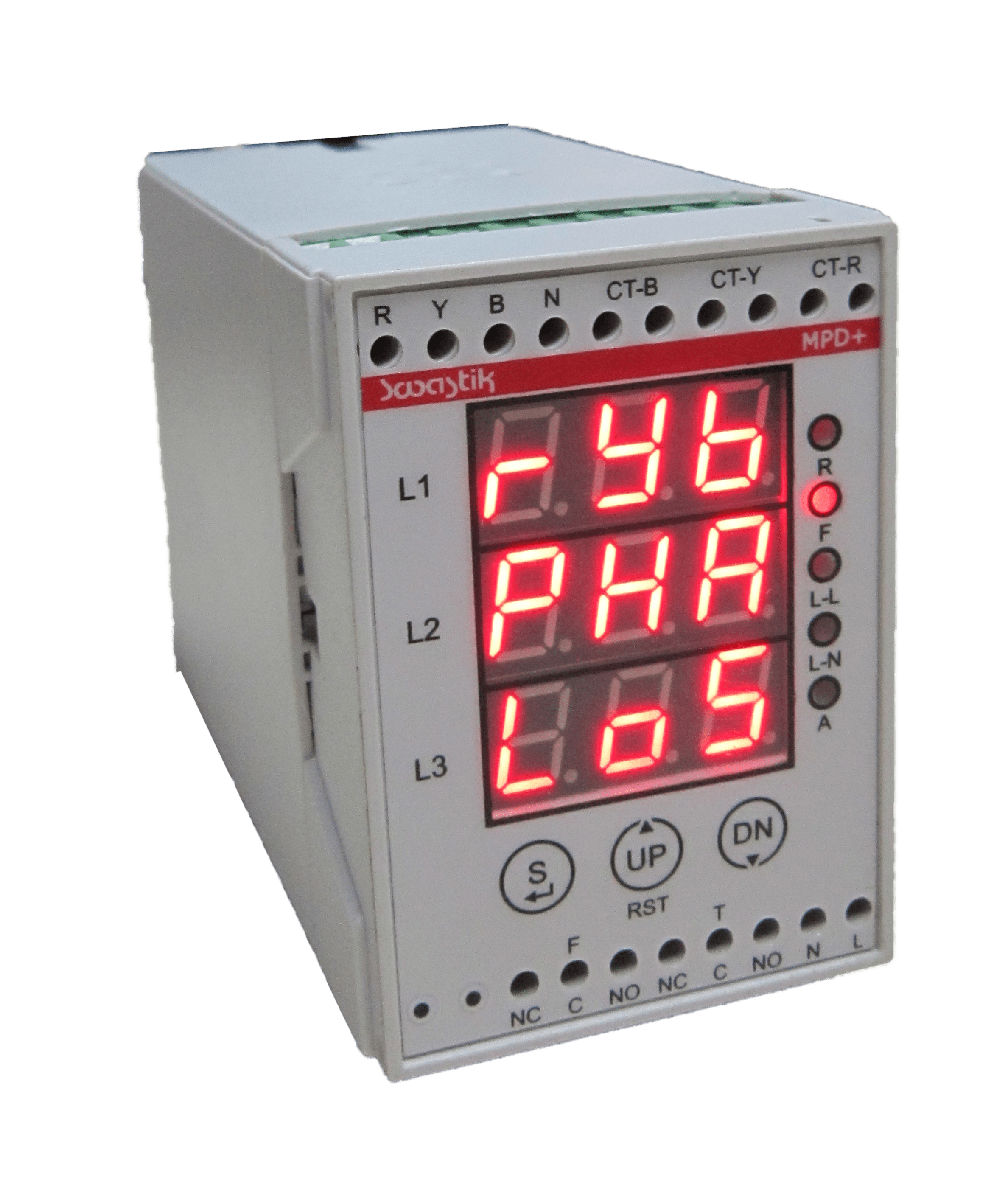

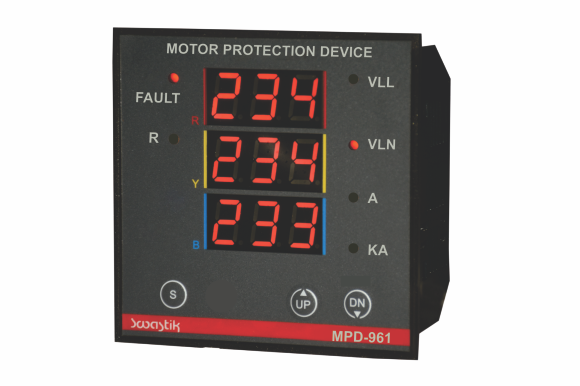

Motor Protaction Device

Specifications Description Product Brochure

0 – 500VAC / 0-5000 Amp CT Selectable
Over/Under Voltage, Current , Unbalance SPP, Phase Sequence, Over/Under Frequency, Lock Rotor, short Circuit Protection
3 Digit 3 Line Display
2 Relay Output For Fault and Healthy Indication
Panel And Channel Mount
230 VAC Power Supply

Case Size	96 x 96 x 45
Range Limit	0-500 VAC / 0-999 AMP
Input	5 Amp CT Selectable / Volt: 0-500 VAC
Function	Three Phase Protection : Over / Under Voltage , Over / Under Current , Unbalance, SPP, phase Sequence, Over / Under Frequency, Lock Rotor, Short Circuit
Output	2 Relay Output
Accuracy	+/- 0.5% of FS
Display	3 Digit 3 Line
Keyboard	3 Keys
Front Protection	ABS Plastic Body
Mounting	Flush Panel Mounting With side clamp
Power Supply	230 VAC +/- 10%, 50 HZ
Enviornment	Temp : 0 - 50°C / Rh : 35 - 85 % ( Non - Condensation )
