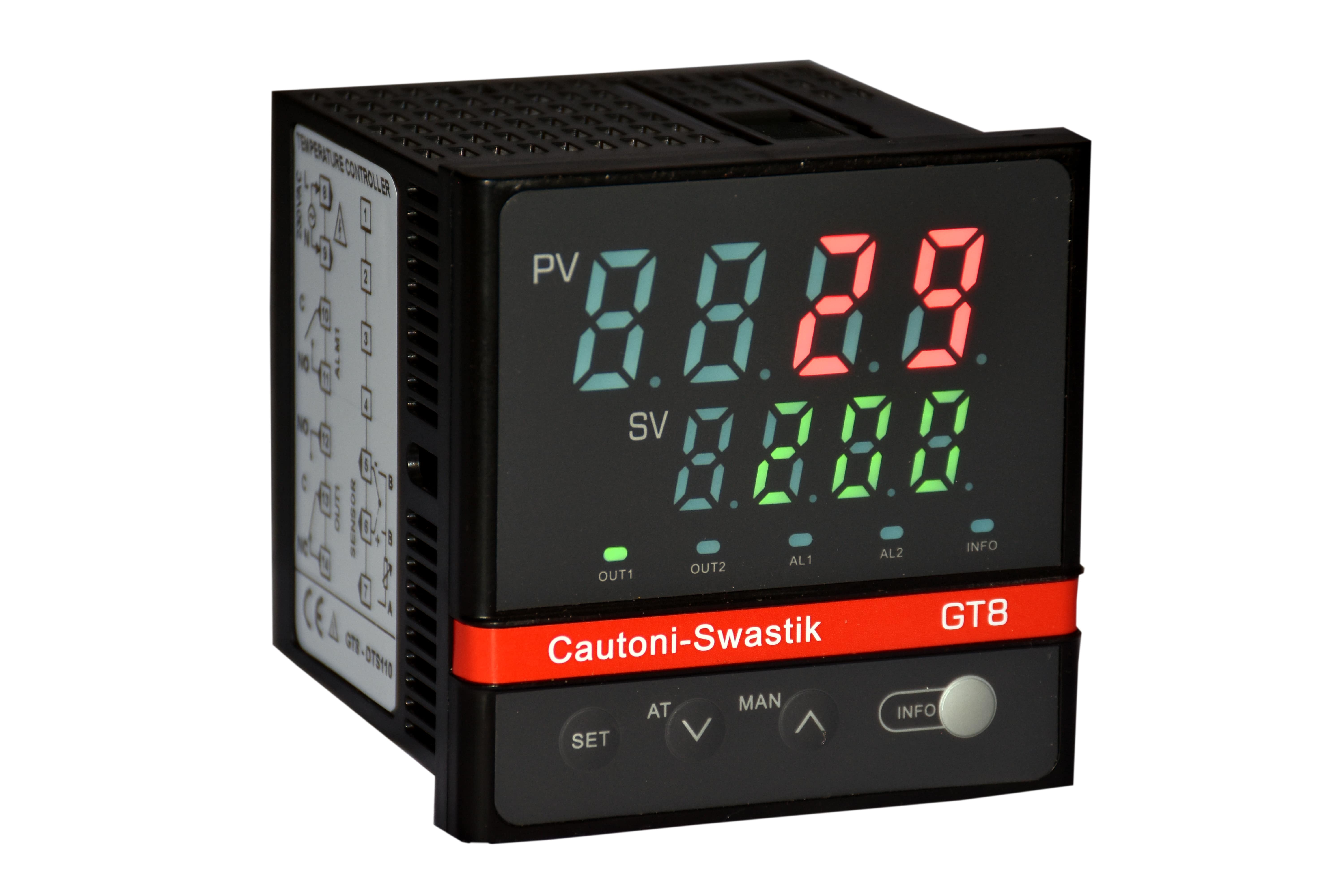

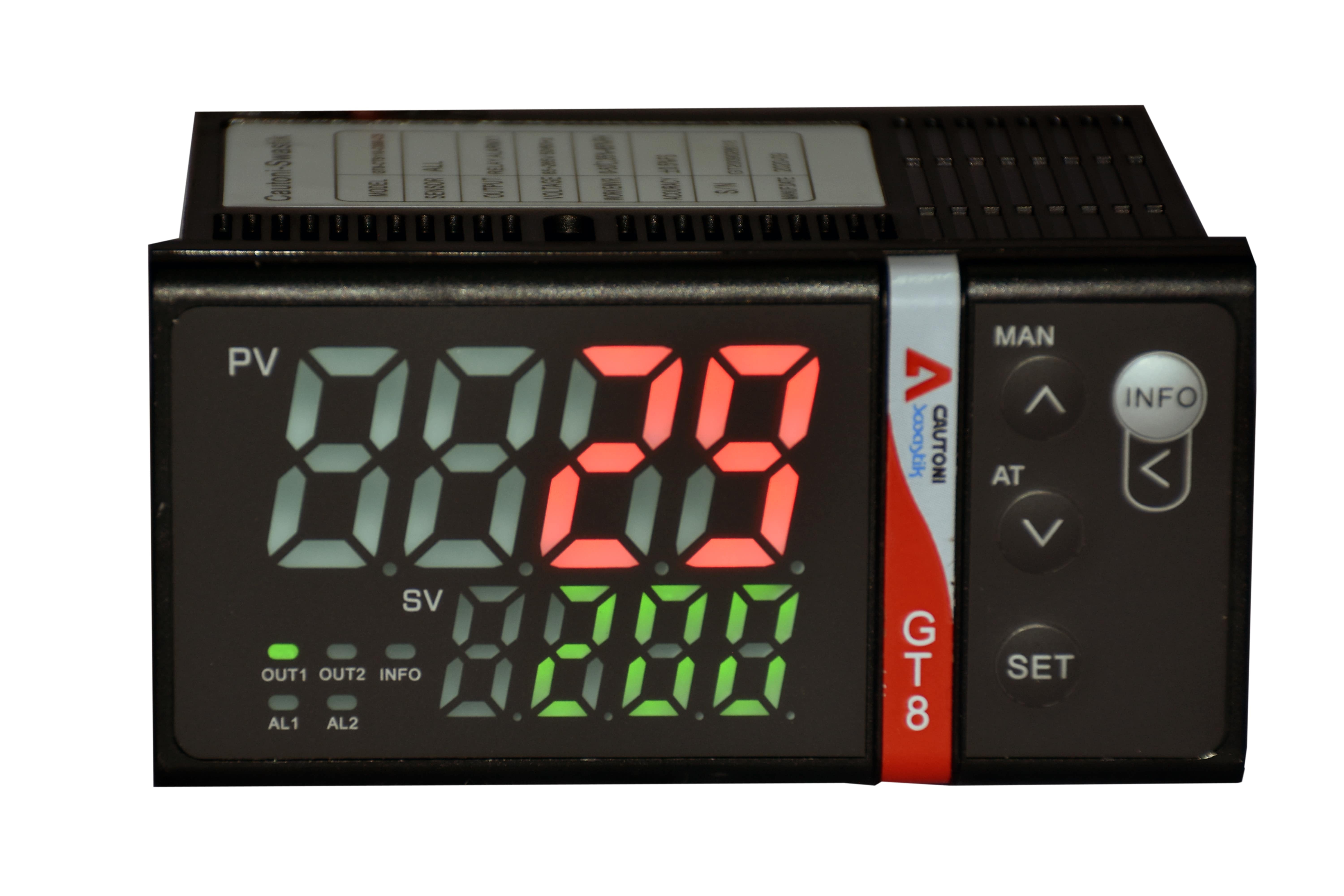

Pressure Controller

Specifications

  • 4-20mA / 0-20mA / 0-5VDC / 0-10VDC Input Selectable
  • -1999 – 9999 Range Selectable
  • 24VDc TPS / 0.1 Resolution Selectable
  • Dual Display / 2 Relay Output
  • 85 – 265 VAC Power Supply

Pressure Controller

Case Size 48 x 48, 72 x 72, 48 x 96 (H), 96 x 48 (V),96 x 96 MM
Sensor T/C : K,E,J,S,B,N,R,T, W3-25,W3-2 RTD : PT-100 /3 WIRE or Analog:(4-20 mA / 0-10 VDC)
Range Limit Check Table -1 for Range and Set Point High / Low Limit
Accuracy +/- 0. 5 % OF FS
Sampling Time 300 MS
Resolution 0.1 °C / 1 °C User Selectable
Unit °C / °F User Selectable
Control Action PID / TWO -WAY PID / ON-OFF
Number of Relay 2 / 3 Relay Output
Relay Relay AC 220 V / 30 VDC / 3 A
Logic Level On : 12 VDC OFF : 0.5 VDC / 30 mA, Load Resistance
Analog Output 4 - 20 mA / 20 - 4 mA Isolated from input
Auto / Manual Operation Output Power is increased / Decreased by Up / Down key in Manual Mode
Alarm Type High / Low Alarm with ( Absolute / Keeping / Return Difference Mode )
Application Heating / Heating + Cooling / Cooling / BOD / COD (Temperature with Timer)
Display / color 4 Digit Dual Display Upper : 4 digit Red Lower : 4 Digit Green Seven Segment Display
Keyboard 4 keys
Indication Indication for Relay Status / Alarm Status / Alarm Information
Port RS - 485
Protocol Modbus / RTU
Mounting Flush Panel Mounting With Side Clamp
Power Supply 95 - 270 VAC, 50- 60 Hz
Working Enviornment Temp : 0 - 50°C / Rh : 35 - 85 % ( Non - Condensation )
