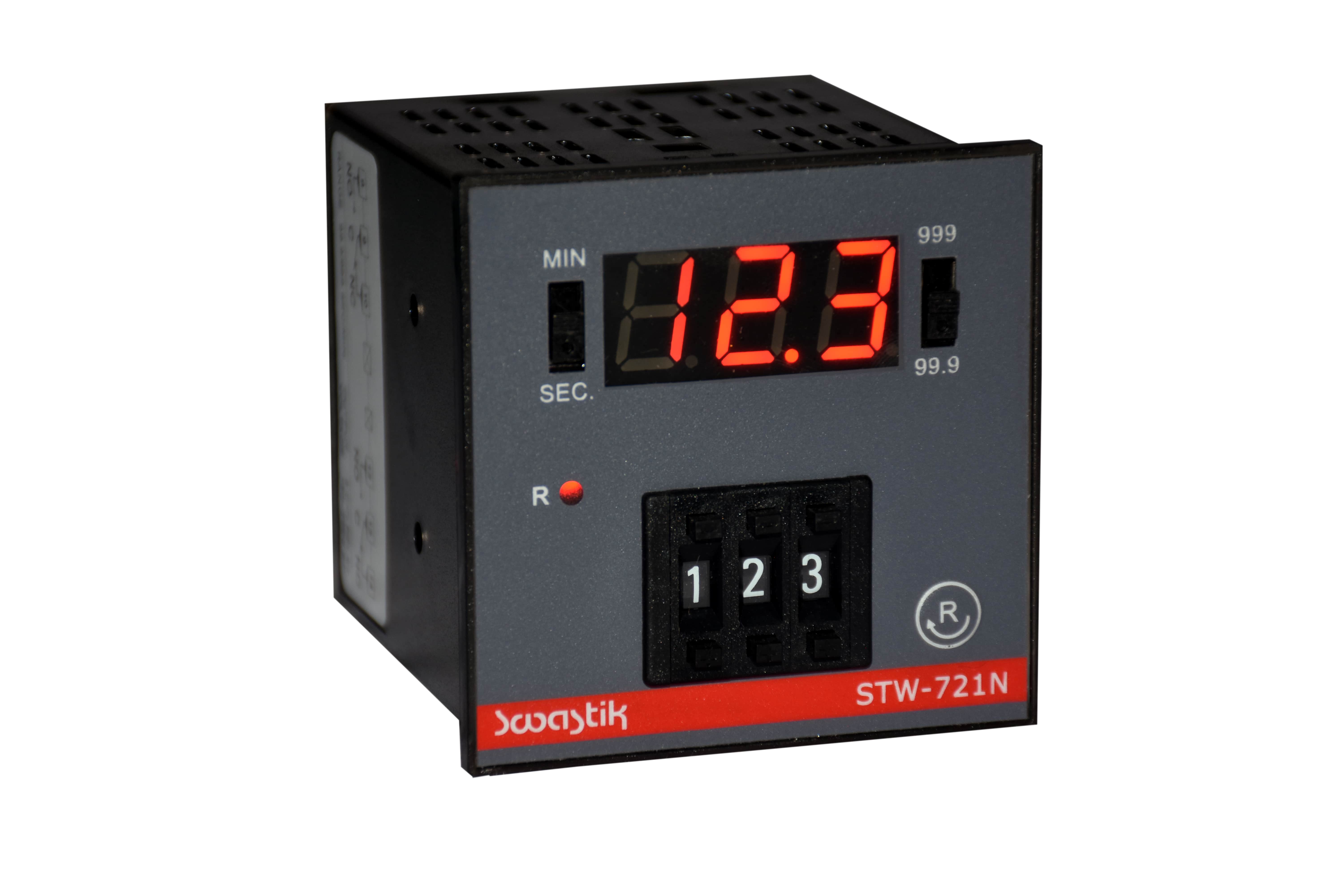

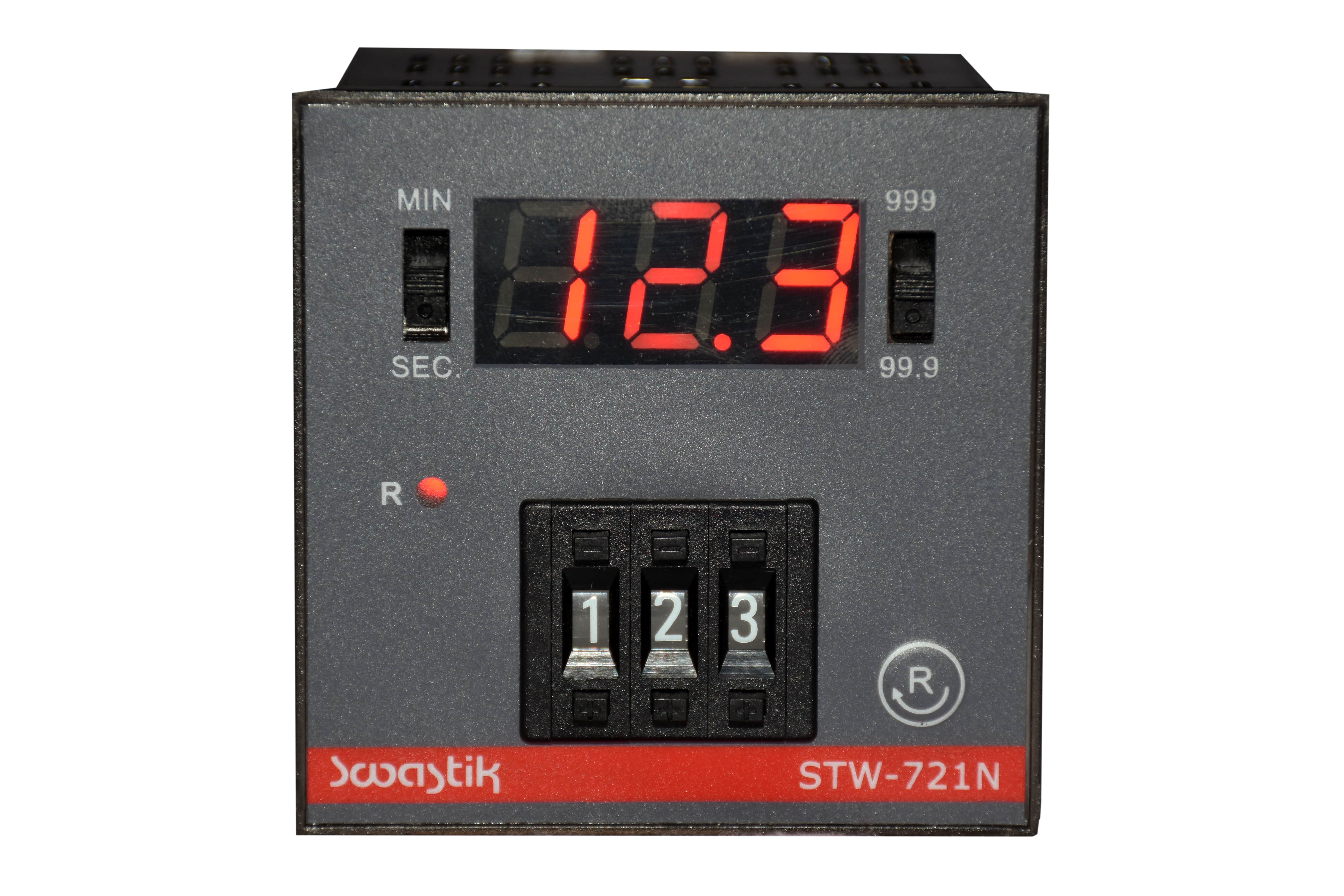

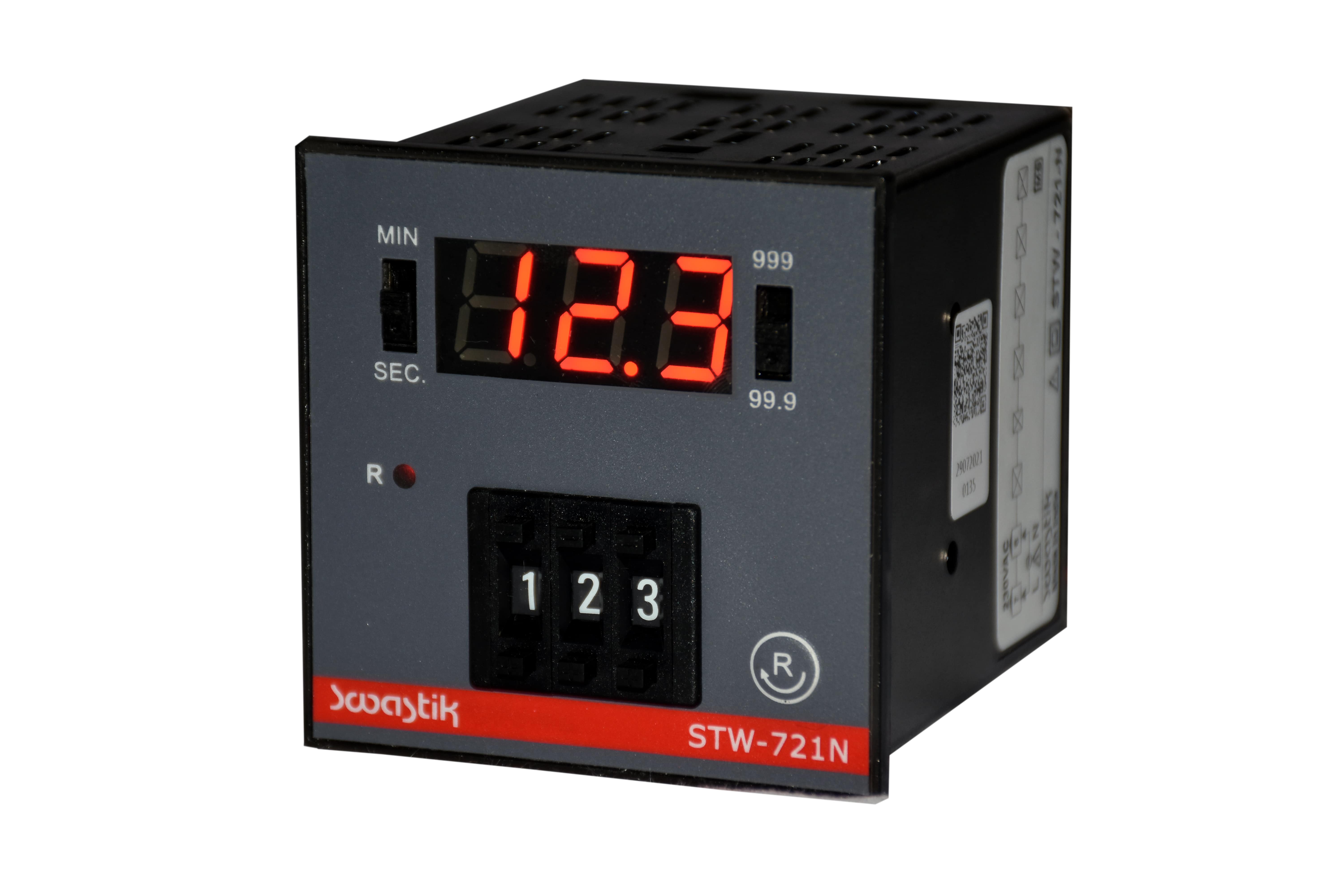

| Case Size | 96 x 96 x 65, 72 x 72 x 80 |
|---|---|
| Panel Hole Size | 92 x 92, 67 x 67 |
| Range Limit | 99.9 / 999 |
| Unit | Sec. / Min |
| Mode | On Delay |
| Set Poin | 1 Set Point |
| Output | 1 Relay (2 C/O) |
| Description | Relay (5 Amp / 230 VAC) |
| Display / Color | 3 Digit Single Display (0.56” Red) |
| Keyboard | Thumbwheel Setting |
| Start Input | Power On Start |
| Indication | Indication For Relay Status |
| Reset | Front Reset |
| Counting | Up |
| Memory | NO |
| Front Protection | Metal Body |
| Mounting | Panel Mounting with side Clamp |
| Power Supply | 230 VAC, + 10 %, 50 Hz |
| Enviornment | Temp : 0 - 50°C / Rh : 35 - 85 % ( Non - Condensation ) |
