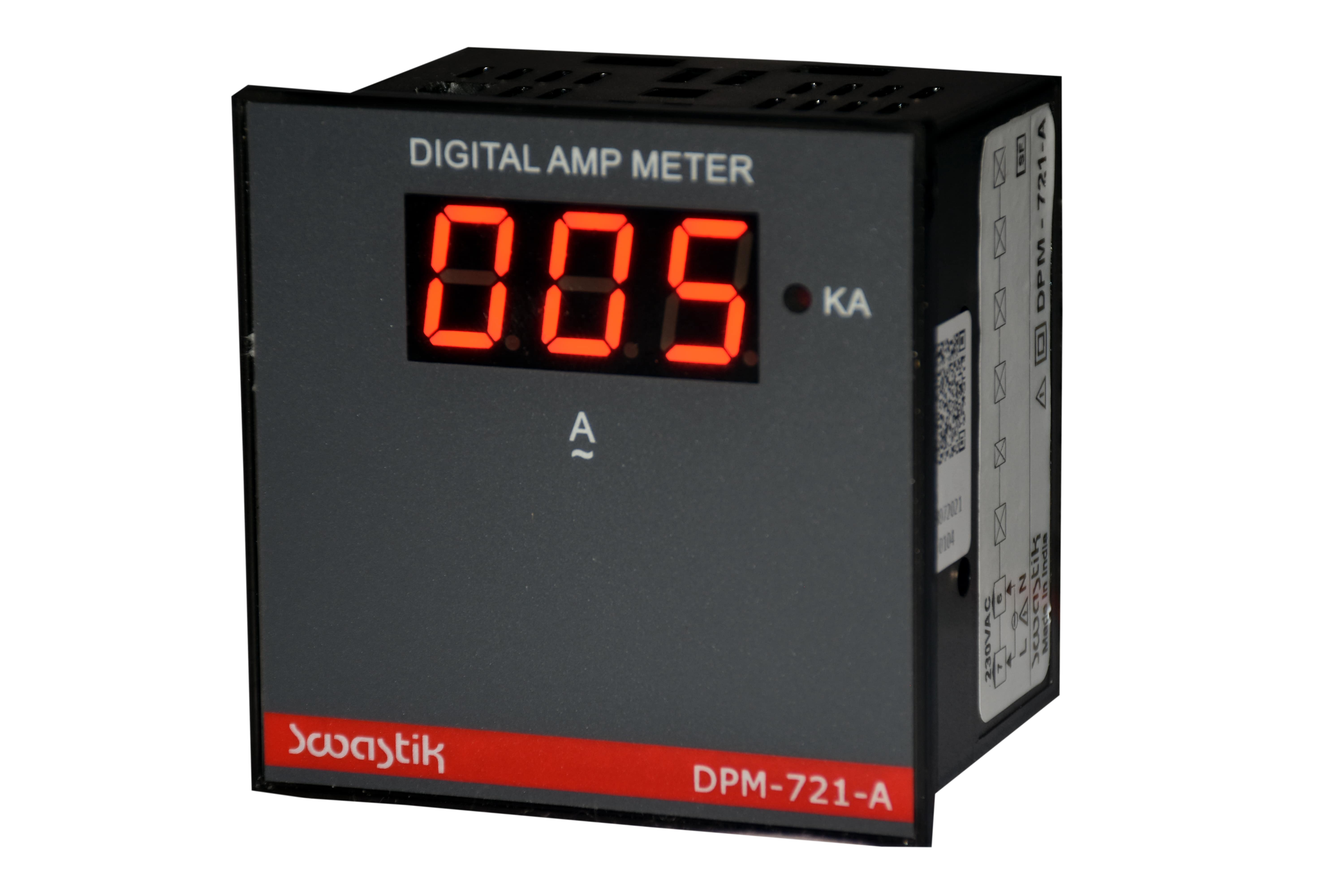

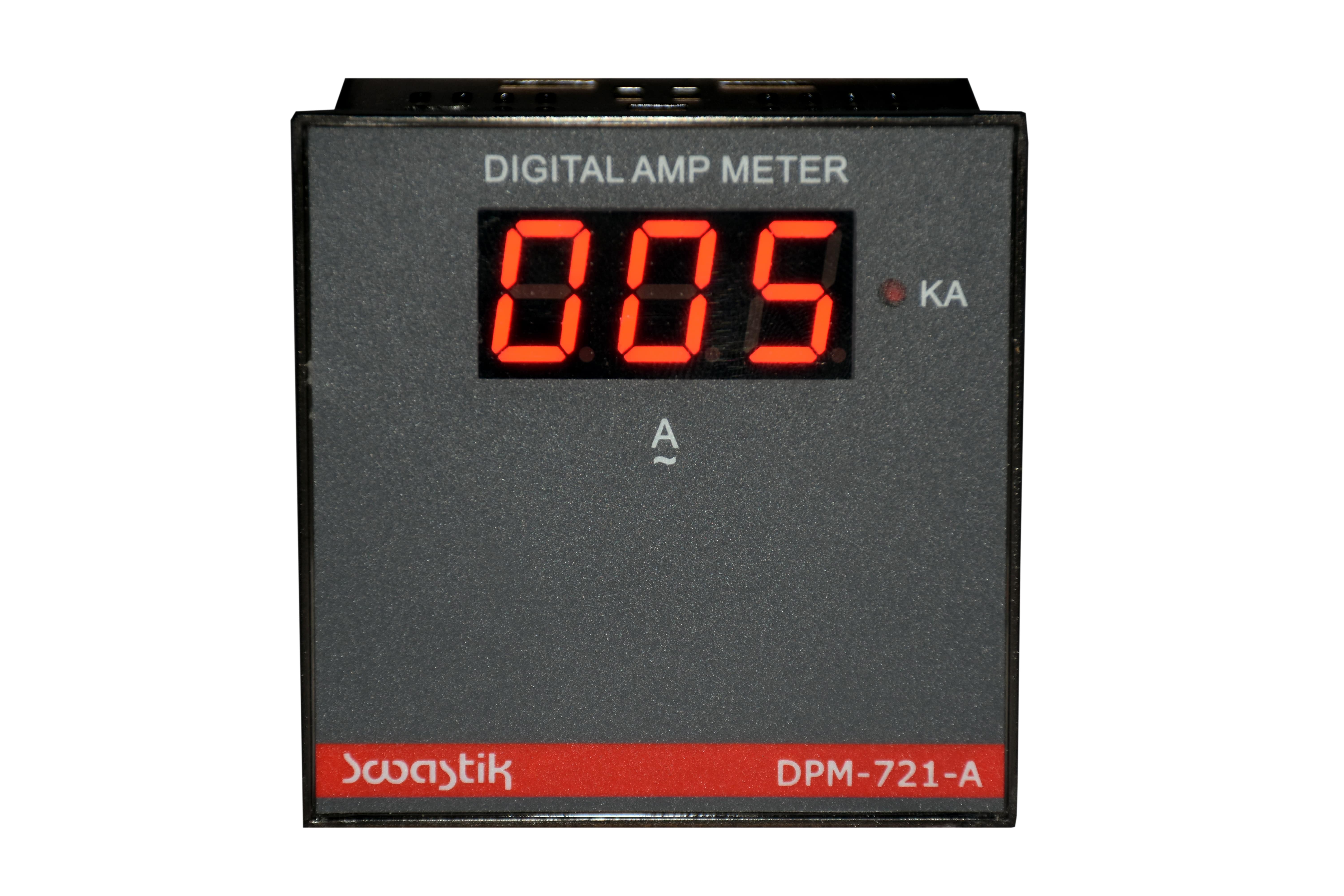

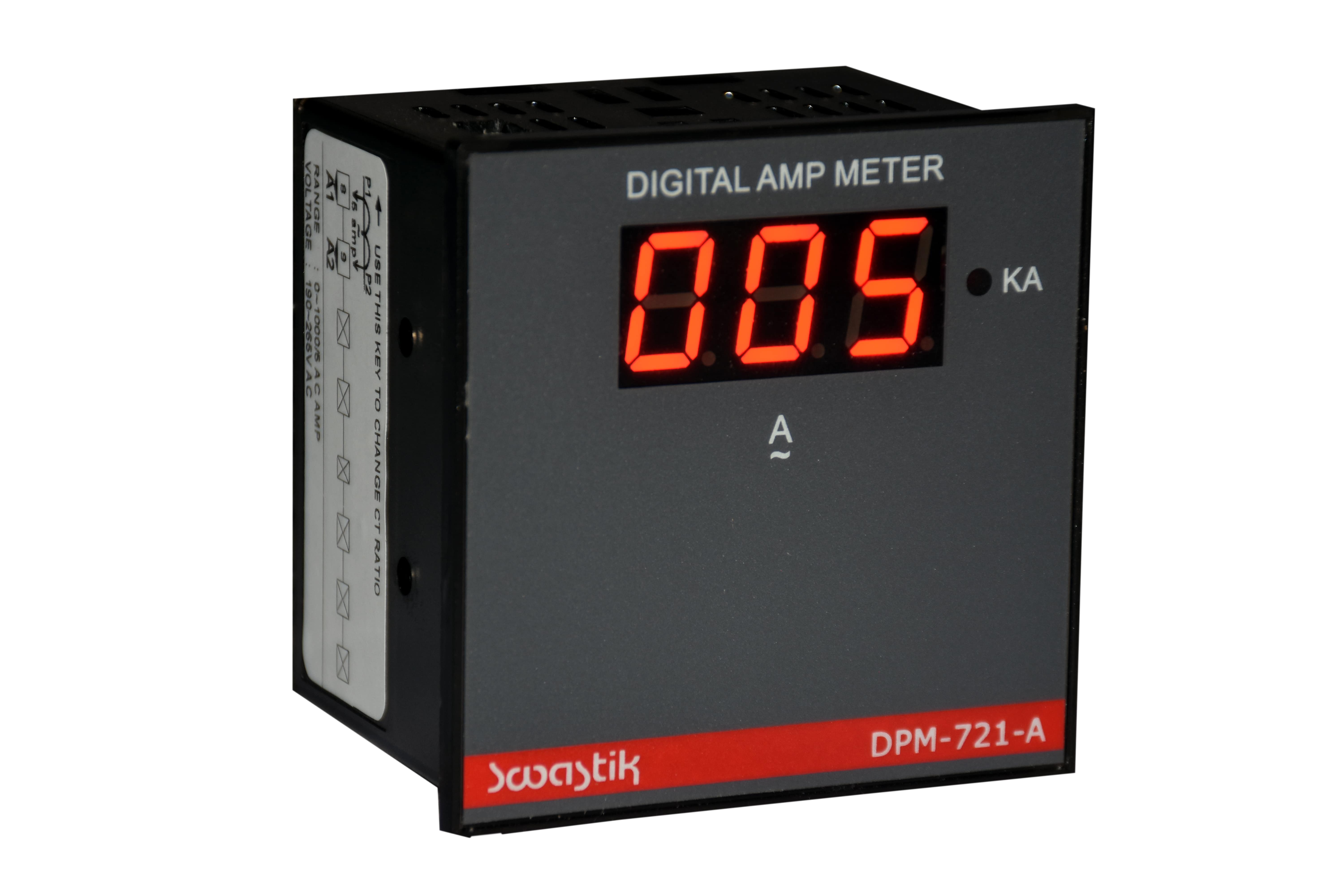

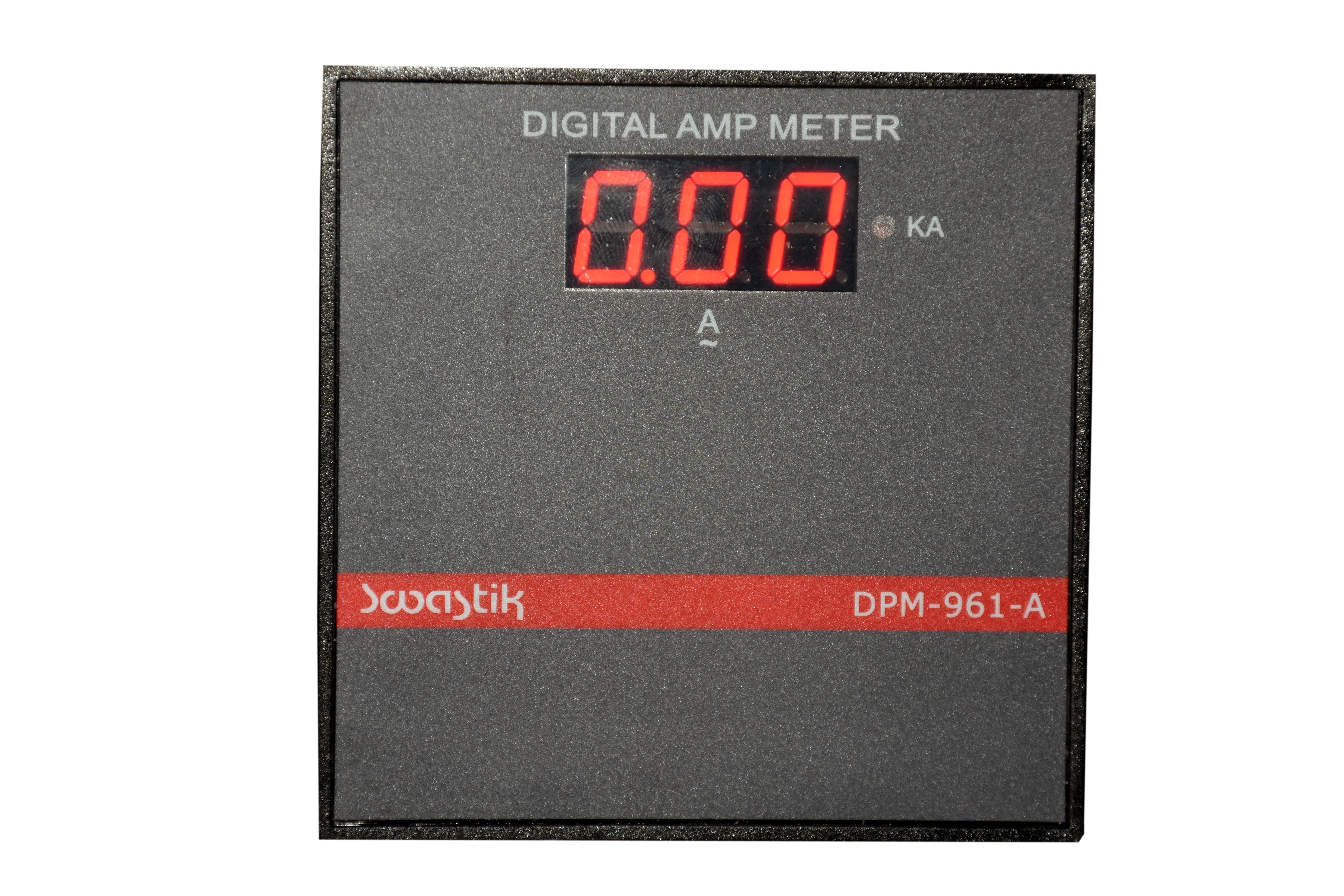

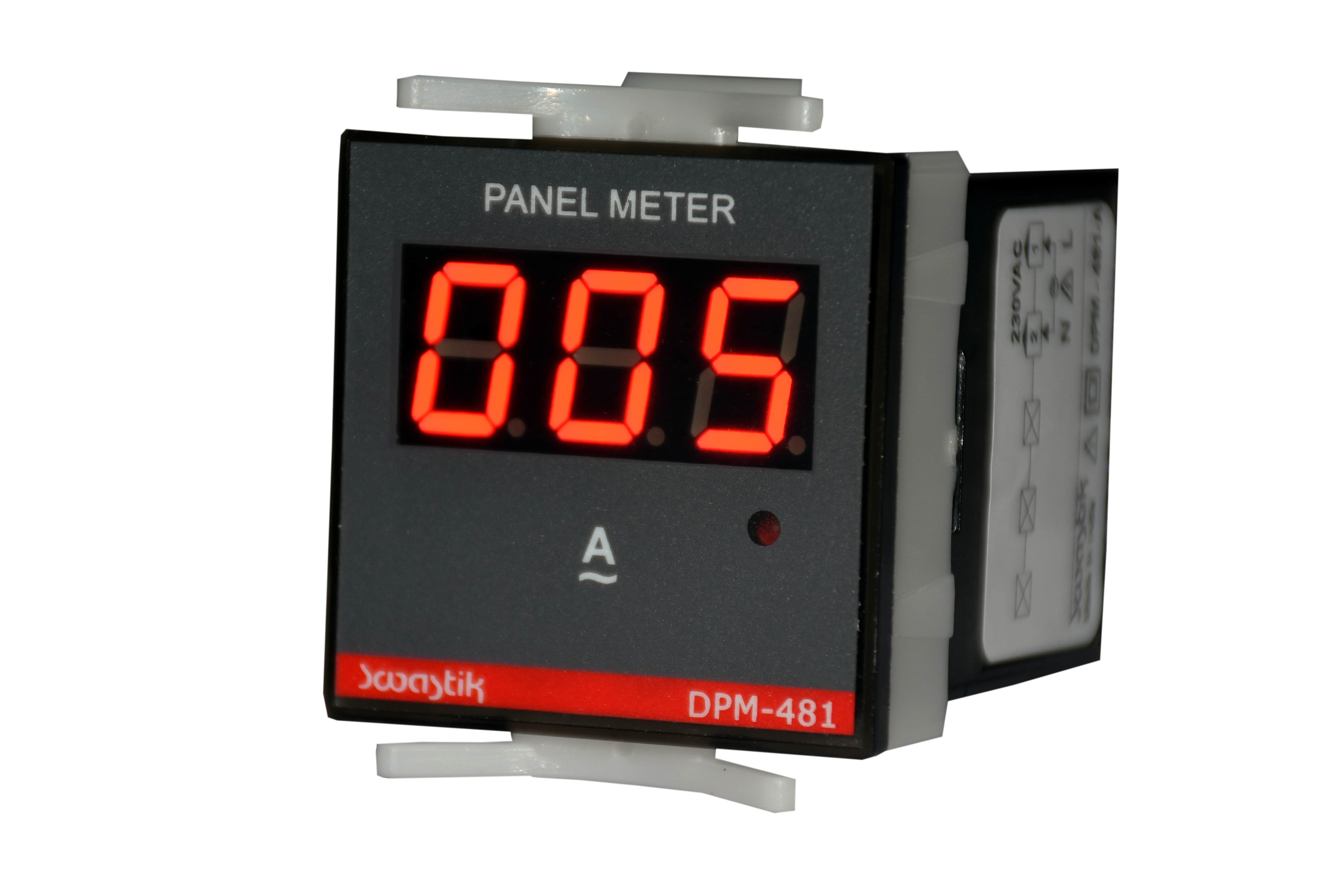

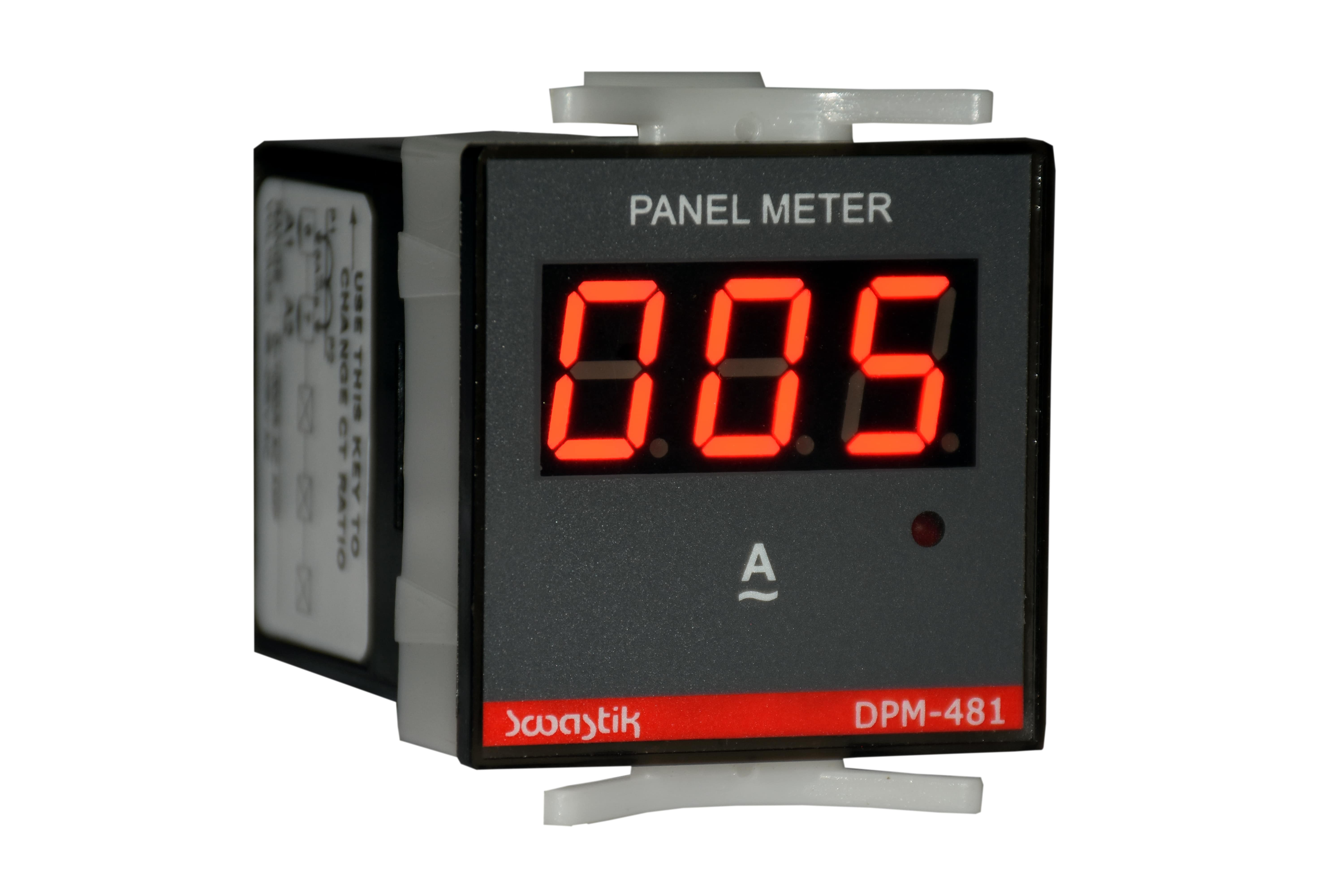

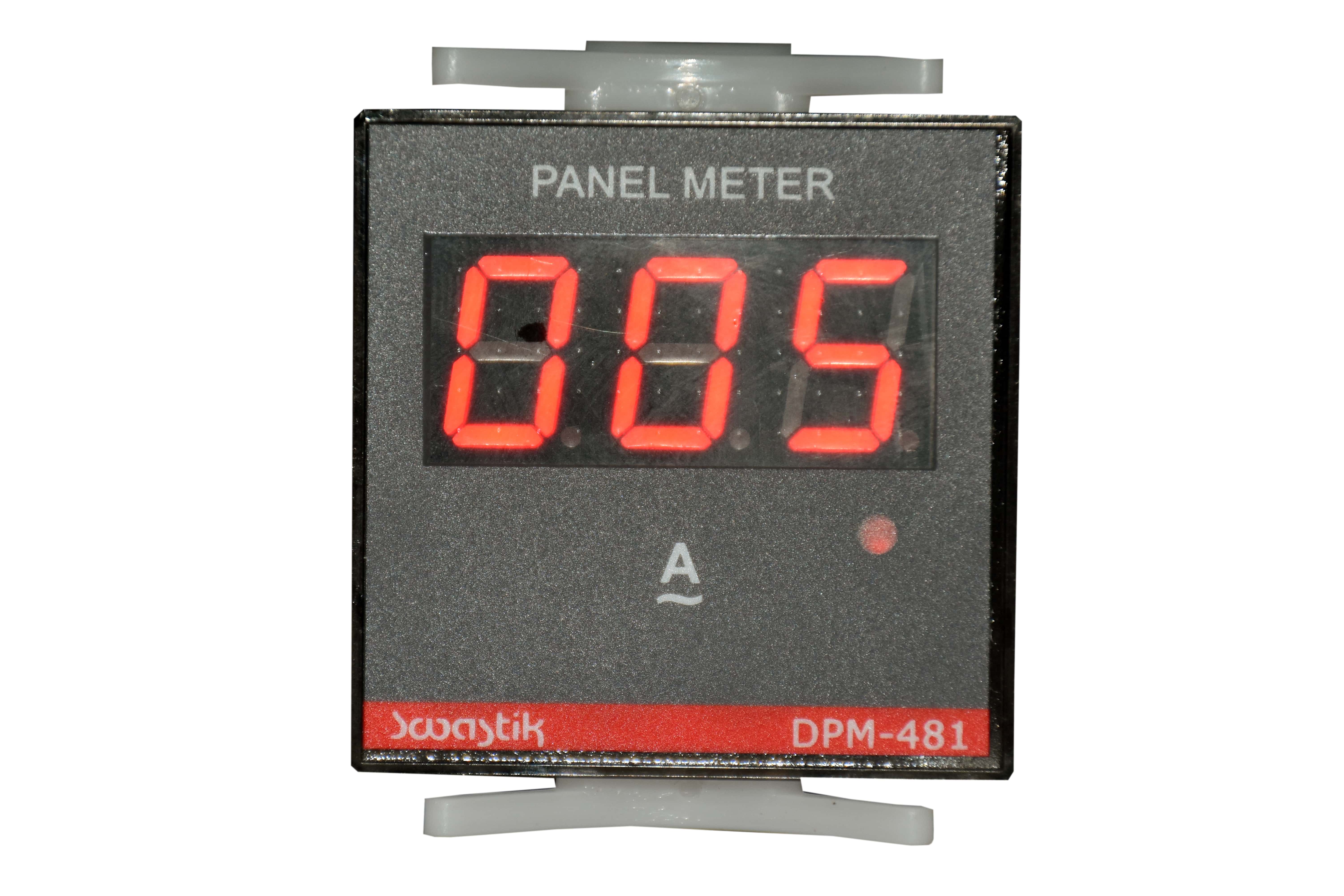

| Case Size | 96 x 96 x 45, 72 x 72 x 45, 48 x 96 x 55, 48 x 48 x 55 |
|---|---|
| 92 x 92, 68 x 68, 46 x 92, 46 x 46 | |
| Range Limit | 0-9999 ADC |
| Input | 75 MV Shunt / 20.0 Amp Direct |
| Function | Single Phase |
| Accuracy | +/- 0.5% of FS |
| Display | 4 Digit Single Display, 3 Key |
| Front Protection | ABS Plastic Body |
| Mounting | Flush Panel Mounting With side clamp |
| Power Supply | 230 VAC +/- 10%, 50 HZ |
| Enviornment | Temp : 0 - 50°C / Rh : 35 - 85 % ( Non - Condensation ) |
